About
Specifications

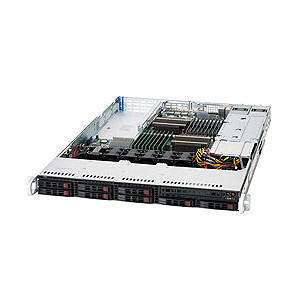

Designed for optimal performance, the dual-processor SuperServer 6016 series support the QPI format quad-core/dual-core Xeon 5600/5500 Series processors in a high-density 1U form-factor. The 6016 SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
About
Designed for optimal performance, the dual-processor SuperServer 6016 series support the QPI format quad-core/dual-core Xeon 5600/5500 Series processors in a high-density 1U form-factor. The 6016 SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1026T-6RF+
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1026T-6RF+
Product Name
SuperServer 1026T-6RF+ Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
Chipset
Chipset Manufacturer
Intel
Chipset Model
5520
Memory
Maximum Memory Supported
192 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Total Number of Memory Slots
18.0
Storage
Optical Drive Type
DVD-Reader
Optical Media Supported
DVD-ROM
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1, 5, 6, 10, 50, 60
Display & Graphics
Graphics Controller Manufacturer
Matrox
Graphics Controller Model
G200eW
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
8
Total Number of Expansion Slots
3.0
Number of PCI Express x8 Slots
3
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Network (RJ-45)
Yes
VGA
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
750 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
27.8"
Miscellaneous
Package Contents
- SuperServer 1026T-6RF+ Barebone System
- 1 x Super X8DTU-6F+ Motherboard
- 1 x 1U Chassis
- 1 x Mylar air shroud for SC819, X8DTU+ MB
- 1 x Sup 8x2.5"" Hot-swap SAS/SATA hdd; SATA con
- 1 x SATA CABLE 61CM FLAT S-S PBF
- 1 x IPASS TO 4 SATA 43/43/33/33CM RA, W/ SB,PBF
- 1 x IPASS TO 4 SATA 70/60/50/50 CM RA, W/ SB,PBF
- 1 x mini-SATA to SATA adapter for slim DVD
- 1 x CD For X8 series
- 1 x RISER CARD RSC-R1UU-2E8
- 1 x RSC-R1UU-E8R+ REV 1.00, PBF Riser Card
- 2 x 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP)
- 2 x 1U REDUNDANT PWS 50MM W PMBUS GOLD EFFICIENCY
- 1 x FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
- 1 x CSE-PT0100 Dummy fan for 40x56 counter-rotating fan
- 5 x 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
- 8 x Black hot swap 2.5"" SAS/SATA HDD tray
- 1 x Rail set, quick/quick, default for 819, 119
Additional Information
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4 GT/s
Expansion Slot Detail:
- 1 x PCI Express x8 slot has the bus speed of PCI Express x4
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
