Supermicro's new cost-effective Mini-ITX Box PC based on Intel® NM10 Express Chipset supports Intel® Atom™ processor N2800. It is well-suited for embedded applications such as digital signage, gaming machine, indoor kiosk, ATM, Point of Sales (POS).
About

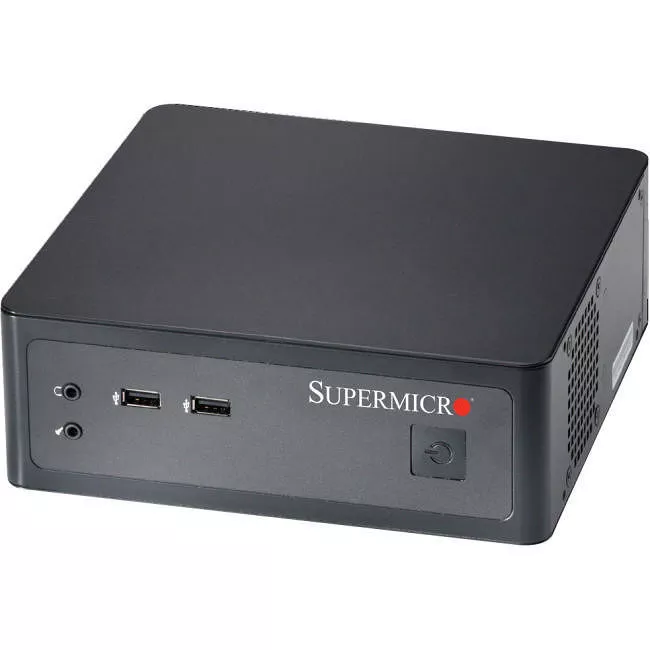

Supermicro's new cost-effective Mini-ITX Box PC based on Intel® NM10 Express Chipset supports Intel® Atom™ processor N2800. It is well-suited for embedded applications such as digital signage, gaming machine, indoor kiosk, ATM, Point of Sales (POS).
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1017A-MP
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1017A-MP
Product Name
SuperServer 1017A-MP (Black)
Product Type
Server
Processor
Number of Processors Supported
1
Number of Processors Installed
1
Processor Manufacturer
Intel
Processor Type
Atom
Processor Model
N2800
Processor Core
Dual-core (2 Core)
Processor Speed
1.86 GHz
Cache
1 MB
Direct Media Interface
2.50 GT/s
64-bit Processing
Yes
Hyper-Threading
Yes
vPro Technology
No
Chipset
Chipset Manufacturer
Intel
Chipset Model
NM10 Express
Memory
Maximum Memory Supported
4 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1066/PC3-8500
Total Number of Memory Slots
2.0
Controllers
Controller Type
Serial ATA/300
I/O Expansions
Number of Total Expansion Bays
1
Number of Internal 2.5" Bays
1
Total Number of Expansion Slots
1.0
Number of Mini PCI Express Slots
1
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
Graphics Media Accelerator 3650
Graphics Memory Accessibility
Shared
Graphics Memory Technology
DDR3 SDRAM
Network & Communication
Ethernet Technology
Gigabit Ethernet
Interfaces/Ports
HDMI
Yes
Total Number of USB Ports
6
Number of USB 2.0 Ports
4
Number of USB 3.0 Ports
2
Network (RJ-45)
Yes
Audio Line In
Yes
Audio Line Out
Yes
VGA
Yes
DisplayPort
Yes
Power Description
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
60 W
Physical Characteristics
Color Family
Black
Product Color
Black
Height
2.7"
Width
7.7"
Depth
7.7"
Weight (Approximate)
3.86 lb
Miscellaneous
Package Contents
- SuperServer 1017A-MP (Black)
- 1 x Super X9SCAA Motherboard
- 1 x Embedded Mini-ITX Chassis
- 1 x 60W DC power adapter with US power cord 18AWG 6ft RoHS, PBF
- 1 x 1017A-MP, QRG, HF, RoHS/REACH, PBF Manual
- 1 x Standard I/O Shield for X9SCAA/-L with EMI Gasket
Certifications & Standards
- ACPI 1.0
- ACPI 2.0
Environmentally Friendly
Yes
Environmental Compliance
Warranty
Limited Warranty
3 Year
