Designed for applications that require the highest performance at the best price/performance/watt, these Supermicro uni-processor 1U rack servers support the latest Xeon X3400/L3400 Series processors and deliver additional levels of performance, power-efficiency and reliability.
About
Designed for applications that require the highest performance at the best price/performance/watt, these Supermicro uni-processor 1U rack servers support the latest Xeon X3400/L3400 Series processors and deliver additional levels of performance, power-efficiency and reliability.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1016I-UF
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1016I-UF
Product Name

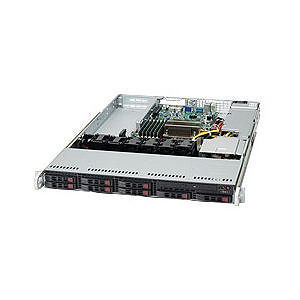

SuperServer 1016I-UF Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket H LGA-1156
Processor Supported
Chipset
Chipset Manufacturer
Intel
Chipset Model
3420
Memory
Maximum Memory Supported
32 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Number of Total Memory Slots
6
Storage
Optical Drive Type
DVD-Reader
Optical Media Supported
DVD-ROM
Controllers
Controller Type
Serial ATA/300
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
Matrox
Graphics Controller Model
G200eW
Graphics Memory Capacity
16 MB
Graphics Memory Technology
DDR2 SDRAM
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
8
Number of Internal 2.5" Bays
8
Interfaces/Ports
Total Number of USB Ports
1
Number of USB 2.0 Ports
1
Network (RJ-45)
Yes
VGA
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
330 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
25.6"
Miscellaneous
Package Contents
- SuperServer 1016I-UF Barebone System
- 1 x Super X8SIU-F Motherboard
- 1 x 1U Chassis
- 1 x Sup 8x2.5"" Hot-swap SAS/SATA hdd; SATA con
- 1 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
- 1 x IPASS TO 4 SATA 43/43/33/33CM RA, W/ SB,PBF
- 1 x IPASS TO 4 SATA 70/60/50/50 CM RA, W/ SB,PBF
- 1 x 70CM, INTERNAL USB CABLE FOR SLIM USB DVD ROM
- 1 x mini-SATA to USB adapter for slim DVD
- 1 x Black slim SATA DVD, Panasonic
- 1 x Black slim SATA DVD, TEAC
- 1 x DRIVER CD FOR X8 UP MOTHERBOARD
- 1 x RSC-R1UU-E8R+ REV 1.00, PBF
- 1 x RISER CARD RSC-R1UU-UE8, PBF
- 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156
- 1 x 1U 330W MULTI OUTPUT 80+ GOLD PWS 20PIN
- 1 x FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,50CM,PBF
- 2 x CSE-PT0100 Dummy fan for 40x56 counter-rotating fan
- 3 x 40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M
- 8 x Black hot swap 2.5"" SAS/SATA HDD tray
- 1 x Rail set for SC113
Additional Information
RAID Level Detail:
- Serial ATA Controller supports RAID 0, 1, 10 for Linux
- Serial ATA Controller supports RAID 0, 1, 5, 10 for Windows
Expansion Slot Detail:
- Left Slot: 1 x PCI-Express x16 or 1 x UIO
- Right Slot (Low-Profile): 1 x PCI-Express x8
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
