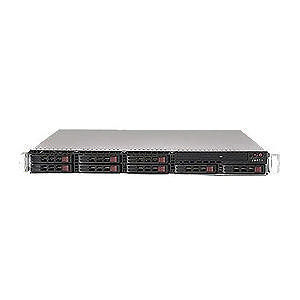

Designed for applications that require the highest performance at the best price/performance/watt, the SuperServer 1016I-M6F Barebone System supports the latest Xeon processors and deliver additional levels of performance, power-efficiency and reliability.
About
Designed for applications that require the highest performance at the best price/performance/watt, the SuperServer 1016I-M6F Barebone System supports the latest Xeon processors and deliver additional levels of performance, power-efficiency and reliability.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1016I-M6F
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1016I-M6F
Product Name
SuperServer 1016I-M6F Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket H LGA-1156
Processor Supported
Chipset
Chipset Manufacturer
Intel
Chipset Model
3420
Memory
Maximum Memory Supported
48 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Controllers
Controller Type
Serial Attached SCSI (SAS)
RAID Supported
Yes
RAID Levels
0, 1, 1+0
Display & Graphics
Graphics Controller Manufacturer
Matrox
Graphics Controller Model
G200eW
Graphics Memory Capacity
16 MB
Graphics Memory Technology
DDR2 SDRAM
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
8
Number of Internal 2.5" Bays
8
Number of Total Expansion Slots
1
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Network (RJ-45)
Yes
VGA
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
560 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
20"
Miscellaneous
Package Contents
- SuperServer 1016I-M6F Barebone System
- 1 x Super X8SI6-F Motherboard
- 1 x 1U Chassis
- 1 x Sup 8x2.5"" Hot-swap SAS/SATA hdd; SATA con
- 1 x IPASS TO 4 SATA 23CM PBF
- 1 x IPASS TO 4 SATA 43/43/33/33CM RA, W/ SB,PBF
- 1 x 70CM, INTERNAL USB CABLE FOR SLIM USB DVD ROM
- 1 x mini-SATA to USB adapter for slim DVD
- 1 x Black slim SATA DVD, Panasonic
- 1 x Black slim SATA DVD, TEAC
- 1 x DRIVER CD FOR X8 UP MOTHERBOARD
- 1 x RISER CARD 1U PCI-E 16X TO 16X
- 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156
- 1 x 560W MULTIPLE OUTPUT W/HARNESS STD 24PIN
- 1 x FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
- 4 x 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
- 8 x Black hot swap 2.5"" SAS/SATA HDD tray
- 1 x Sliver chassis rail set for SC813M,515,113M
Additional Information
Memory Detail:
- Supports 6 Registered DIMM sockets
- Supports 4 Un-Buffered DIMM sockets
Environmentally Friendly
Yes
Environmental Certification
Warranty
Limited Warranty
3 Year
