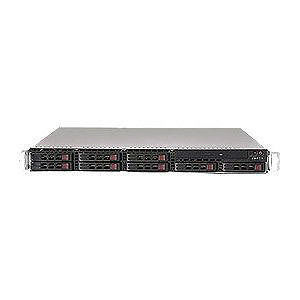

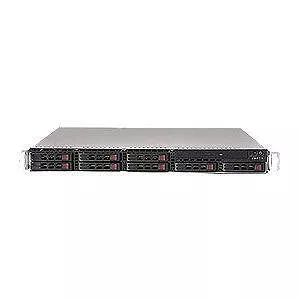

Designed for entry-level file/web/mail servers and small business applications, the SuperServer 1015B-M3B Barebone System supports the latest Xeon processors and deliver additional levels of performance, power-efficiency and reliability.
About
Designed for entry-level file/web/mail servers and small business applications, the SuperServer 1015B-M3B Barebone System supports the latest Xeon processors and deliver additional levels of performance, power-efficiency and reliability.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1015B-M3B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1015B-M3B
Product Name
SuperServer 1015B-M3B Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
Chipset
Chipset Manufacturer
Intel
Chipset Model
3210
Memory
Maximum Memory Supported
8 GB
Memory Technology
DDR2 SDRAM
Memory Standard
DDR2-800/PC2-6400
Number of Total Memory Slots
4
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1, 1+0
Display & Graphics
Graphics Controller Manufacturer
Winbond
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
8
Number of Internal 2.5" Bays
8
Number of Total Expansion Slots
1
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Network (RJ-45)
Yes
VGA
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
560 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
20"
Weight (Approximate)
10 lb
Miscellaneous
Package Contents
- SuperServer 1015B-M3B Barebone System
- 1 x Super X7SB3 Motherboard
- 1 x 1U Chassis
- 1 x 1U Air Shroud
- 1 x SAS / SATA Backplane [ Manual ]16-pin to 16-pin Front Cable
- 2 x 8-Pin to 8-Pin Ribbon Cable For SGPIO
- 2 x SATA Cable SET OF 4, Right Angle
- 1 x SATA Cable SET OF 4, Right Angle
- 1 x Driver CD
- 8 x Hot-swappable Hard Drive Tray
- 4 x 40x28mm Cooling Fans
- 1 x Heatsink / Retention
- 1 x SC813M 1U Chassis Mounting Rails
- 1 x 560W High-Efficiency Power Supply
- 1 x 1U PCI-E x8 Riser Card
Environmentally Friendly
Yes
Environmental Certification
Warranty
Limited Warranty
3 Year
