MPN: SYS-1015B-3B

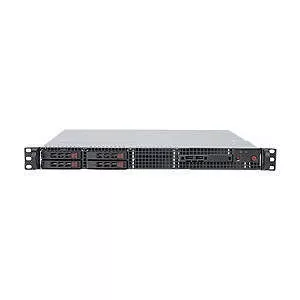

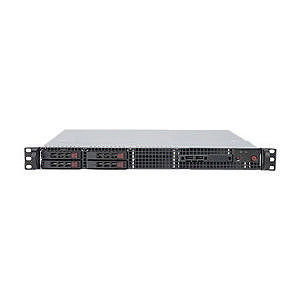

Supermicro SYS-1015B-3B 1U Rackmount Barebone- Intel 3210 Chipset - Socket T LGA-775 - 1 x CPU
Highlights
About
Specifications
Designed for entry-level file/web/mail servers and small business applications, these Supermicro uni-processor 1U rack servers support the latest Xeon 3200/3000 Series processors and deliver additional levels of performance, power-efficiency and reliability.
About
Designed for entry-level file/web/mail servers and small business applications, these Supermicro uni-processor 1U rack servers support the latest Xeon 3200/3000 Series processors and deliver additional levels of performance, power-efficiency and reliability.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1015B-3B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1015B-3B
Product Name
SuperServer 1015B-3B Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
3210
Memory
Maximum Memory Supported
8 GB
Memory Technology
DDR2 SDRAM
Memory Standard
DDR2-800/PC2-6400
Number of Total Memory Slots
4
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1, 1+0
Display & Graphics
Graphics Controller Manufacturer
Winbond
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Internal 2.5" Bays
4
Number of Total Expansion Slots
1
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
8
Number of USB 2.0 Ports
8
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
2
Number of SAS Interfaces
8
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
560 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
16.8"
Depth
22"
Weight (Approximate)
35 lb
Miscellaneous
Package Contents
- SuperServer 1015B-3B Barebone System
- 4 x Super X7SB3-F Motherboard
- 1 x 1U Black Chassis
- 1 x 1U Air Shroud
- 1 x Sup 4x2.5ö SAS/SATA hdd; SATA con
- 4 x 35CM, SATA CABLE, PB FREE
- 1 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
- 3 x 4 pin fan extension cord, for fan guide pin at 1&3 or 1&4
- 1 x DRIVER CD FOR X7 UP MOTHERBOARDS
- 1 x 1U RISER PCI-E (X8) TO PCI-E (X8) ROHS
- 1 x CPU HS FOR INTEL PD AND PD+ PROCESSORS
- 1 x 560W MULTIPLE OUTPUT W/HARNESS STD 24PIN
- 1 x HDD POWER CABLE (BIG 4 PIN; 32CM), PBF
- 1 x FRONT CTRL CABLE ROUND 16 TO 16 PIN RIBBON, 65CM
- 3 x 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
- 1 x Rail set, quick/screw, default for 1U 16.8"W SC111
- 4 x Hot-swappable Hard Drive Tray Black
Certifications & Standards
- PCI 2.2
- ACPI 1.0/2.0
- DMI 2.3 Support
Environmentally Friendly
Yes
Environmental Certification
Warranty
Limited Warranty
3 Year
