MPN: SSG-2028R-E1CR48N

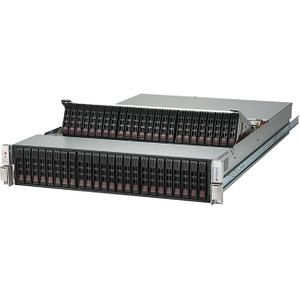

Supermicro SSG-2028R-E1CR48N 2U Rackmount Barebone - Intel C612 Chipset - 2X Socket R3 LGA 2011
Highlights
About
Specifications
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SSG-2028R-E1CR48N
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
2028R-E1CR48N
Product Name
SuperServer 2028R-E1CR48N (Black)
Product Type
Barebone System
Processor
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
1.50 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
24
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
I/O Expansions
Number of Total Expansion Bays
50
Number of Internal 2.5" Bays
50
Number of Total Expansion Slots
3
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
3
Number of USB 3.0 Ports
3
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1600 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.2"
Miscellaneous
Package Contents
- SuperServer 2028R-E1CR48N (Black)
- 1 x Super X10DSC+ Motherboard
- 1 x 2U Chassis
- 1 x Sas3 roc mez for X10dsc
- 2 x 2U 24-Port Expander Backplane Support 20x2.5"" SAS3/SATA3 HDD/SSD and 4x2.5"" SAS3/SATA3/NVMe Storage Devices
- 2 x SLIMLINE SAS to MiniSAS HD,INT,85CM,30D-41F-14D,32AWG
- 2 x MINI SAS HD,INT,SAS3 SSD,48CM,32AWG
- 2 x 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
- 1 x Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
- 2 x AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
- 48 x Black 3rd Gen hot-swap 2.5" HDD tray
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
