SMC-PWS-203-1H-00
MPN: PWS-203-1H

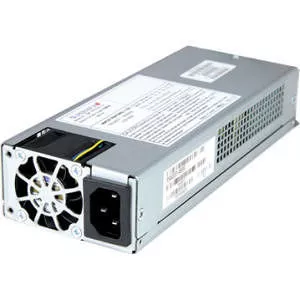

Supermicro PWS-203-1H 1U 200W Multi-output 80Plus Gold PWS

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
PWS2031H
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
PWS-203-1H
Product Name
200W Low Noise Power Supply
Packaged Quantity
1
Product Type
Power Supply
Technical Information
Specification Compliance
EPS12V
Number of Fans
1
Power Description
Number of +12V Rails
1
Input Voltage Type
AC
Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    100 V AC - 240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • 5 V
    • Input Current
    2.6 A
    Output Current
  • 8 A
  • 16 A
  • 500 mA
  • 2 A
    • Output Power
    200 W
    Interfaces/Ports
    Receptacles
  • 20-pin ATX
  • 8-pin EPS12V
    • Physical Characteristics
    Form Factor
    Rack-mountable
    Height
    1.6"
    Width
    3"
    Depth
    7.6"
    Miscellaneous
    Compatibility
    Supermicro SuperChassis SC504-203B Chassis
    Certifications & Standards
    Safety / EMC:
    • USA - UL listed, FCC
    • Canada - CUL listed
    • CCC Certification
    • EN 60950/IEC 60950-Compliant
    • Europe/CE Mark
    • Germany - TUV Certified
    Environmentally Friendly
    Yes
    Environmental Certification
    80 Plus Gold
    Warranty
    Limited Warranty
    3 Year

    Specifications
