About
Supermicro's motherboards based on Intel® Atom™ processor N2800 (Cedarview). These products are well-suited for entry-level server platforms and embedded IPC market.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X9SCAA-L-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X9SCAA-L
Product Name

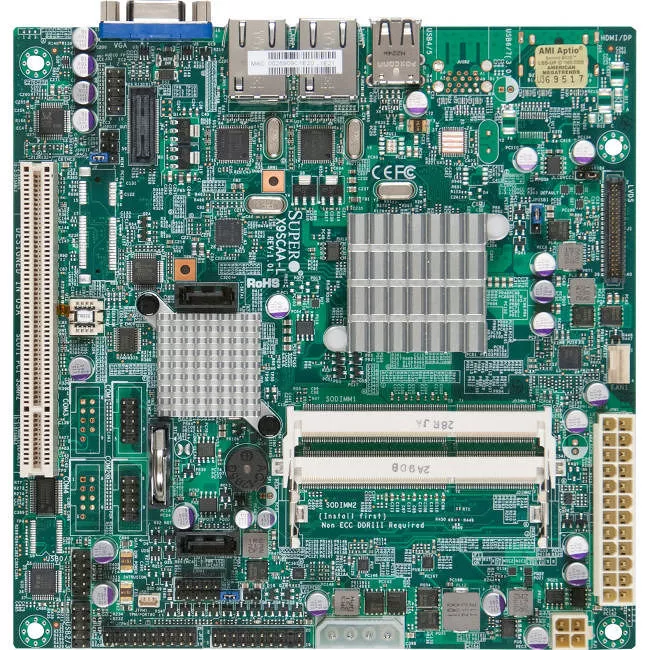

X9SCAA-L Desktop Motherboard
Package Type
Retail
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
NM10 Express
Total Processor Supported
1
Processor Socket
Socket BGA-559
Processor Supported
Atom Dual-Core
64-bit Processing
Yes
Memory
Number of Memory Slots
2
Memory Form Factor
SoDIMM
Maximum Memory Supported
4 GB
Memory Standard
DDR3-1066/PC3-8500
Memory Technology
DDR3 SDRAM
Memory Speed Supported
1066 MHz
I/O Controller
Controller Type
Serial ATA/300
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
GMA 3650
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Audio
Sound Controller Model
ALC888S
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
1
Number of PCI Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
VGA
Yes
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Onboard Interfaces
Number of SATA Interfaces
2
Onboard Serial Header
Yes
Onboard LEDs Header
Yes
Power Description
Power Supply Supported
ATX12V
Physical Characteristics
Form Factor
Mini ITX
Width
6.7"
Depth
6.7"
Miscellaneous
Compatibility
1U Chassis
- CSE-504-203B
- CSE-505-203B
- CSE-101i
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
