ABOUT

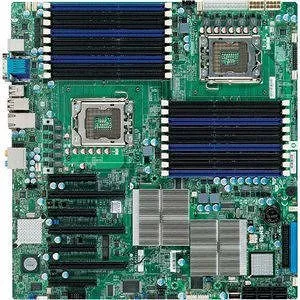

This X8DAH+-F Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance. X8DAH+-F supports the Intel 5500 Series Processor platform, the first dual-processing platform that supports the Intel QuickPath Interconnect (QPI) Technology, providing the next generation point-to-point system interface to replace the current Front Side Bus.
See More
SPECIFICATIONS
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X8DAH+-F-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X8DAH+-F
Product Name
X8DAH+-F Server Motherboard
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
2
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket B LGA-1366
Processor Supported
QuickPath Interconnect
6.40 GT/s
64-bit Processing
Yes
Memory
Number of Memory Slots
18
Maximum Memory
144 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
Matrox
Graphics Controller Model
G200eW
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC888
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
8
Total Number of PCI Express Slots
7
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
4
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Total Number of FireWire/i.LINK Ports
1
Number of FireWire/i.LINK 400 Ports
1
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
VGA
Yes
Network (RJ-45)
Yes
PS/2 Port
Yes
Number of PS/2 Ports
2
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Total Number of Onboard FireWire/i.LINK Ports
1
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
Extended ATX
Width
13.7"
Depth
13"
Miscellaneous
Package Contents
- X8DAH+-F Server Board
- 6 x 57.5cm SATA Flat S-S PBF
- 1 x ATX Floppy Cable 3 Headers PB Free
- 1 x 18" ATA 133/100/66 3-Drop TPE Cable, PBF
- 1 x I/O Shield
Additional Information
System BIOS:
- 32Mb SPI Flash EEPROM with AMI BIOS
- Plug and Play (PnP)
- PCI 2.2
- ACPI up to 3.0
- USB Keyboard support
Environmentally Friendly
Yes
Environmental Certification
RoHS
