About
Specifications

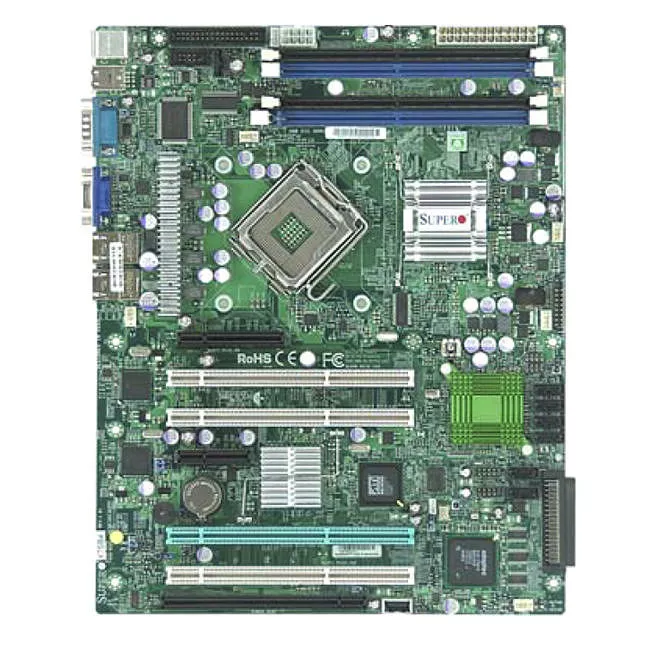

X7SBE Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
X7SBE Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7SBE-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7SBE
Product Name
X7SBE Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
3210
Total Processor Supported
1
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ATI
Graphics Controller Model
ES1000
Graphics Controller Memory
32 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
6
Number of PCI-X Slots
4
Total Number of PCI Express Slots
2
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
ATX
Width
12"
Depth
9.6"
Miscellaneous
Package Contents
- 1 x X7SBE Server Board
- 1 x Motherboard Manual for X7SBE
- 6 x SATA Cable (2Ft.)
- 1 x Version 1.00 CD
- 1 x I/O Shield for X7SBE
Additional Information
System BIOS:
- BIOS Type:
- 16Mb Flash EEPROM with Phoenix BIOS
- BIOS Features:
- Plug and Play (PnP)
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0/2.0
- SMBIOS 2.3
- USB Keyboard support
Environmentally Friendly
Yes
