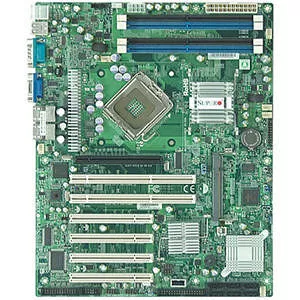

X7SBA Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
X7SBA Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7SBA-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7SBA
Product Name
X7SBA Desktop Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
3210
Total Processor Supported
1
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
Z9S
Graphics Controller Memory
32 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
7
Number of PCI Slots
4
Number of PCI-X Slots
2
Total Number of PCI Express Slots
1
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
ATX
Width
12"
Depth
9.6"
Miscellaneous
Package Contents
- X7SBA Desktop Board
- Motherboard Manual for X7SBA
- ATX Floppy Cable
- SATA Cable (2Ft.)
- Version 1.0 (or newer) CD
- I/O Shield for X7SBA
Additional Information
- ROHS Compliant
- Dual Channel memory supported
Chipsets:
- Intel 3210 chipset
- ICH9R
- PXH/V
BIOS Features:
- 16Mb Flash EEPROM with Phoenix BIOS
- Plug and Play (PnP)
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0/2.0
- USB Keyboard support
- SMBIOS 2.3
Hardware Monitoring:
- Monitors for CPU Cores +1.8V, +3.3V, +5V, ±12V, 3.3V Standby, 5V Standby, VBAT
- CPU 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
- Adjustable CPU clock frequency ratio
- Total of six 4-pin fan headers
- 6 fans with tachometer monitoring
- Status monitor with firmware speed control
- Low noise fan speed control
- Status monitor for on/off control
- Support 3-pin fans (without speed control)
- Pulse Width Modulated (PWM) fan connector
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Monitor 2 (TM2) support
- PECI
- CPU / System Overheat LED
- Standby Power alert LED
- Chassis Intrusion Detection
- Chassis Intrusion Header
- Onboard voltage monitors for CPU cores, Chipset Voltage, Memory Voltage, +1.8V,+3.3V, +3.3V Standby, +5V, +5V Standby, +12V, 12V
- CPU 3-phase-switching voltage regulator
- Status monitor for fan speed & System OH/Fan Fail LED/Control
- Pulse Width Modulation Fan Control & Low noise fan speed control
- Environmental temperature monitoring via BIOS, PWR-Up from AC PWR loss
- Supero Doctor III, NMI
- System Resource alert via Supero Doctor III
ACPI Features:
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- External modem ring-on
Support CD Contents:
- Drivers
- Software for Intel 3210 chipset utilities
