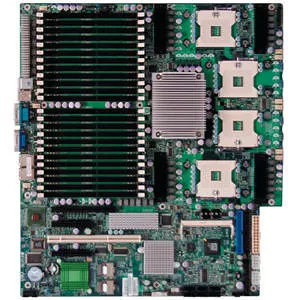

X7QC3 Server Board designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
X7QC3 Server Board designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7QC3-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7QC3
Product Name
X7QC3 Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
7300
Total Processor Supported
4
Processor Socket
Socket PGA-604
Processor Supported
Xeon
Front Side Bus
1066 MHz
Memory
Number of Memory Slots
24
Maximum Memory Supported
192 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
ES1000
Graphics Controller Memory
32 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
4
Number of PCI-X Slots
1
Total Number of PCI Express Slots
3
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Number of SAS Interfaces
8
Total Number of Onboard USB Ports
3
Onboard LEDs Header
Yes
Physical Characteristics
Width
16"
Depth
14.3"
Miscellaneous
Package Contents
- 1 x X7QC3 Server Board
- 1 x Motherboard Manual for X7QC3
- 1 x ATX Floppy Cable
- 2 x SAS Cable
- 1 x ATA 66/100 IDE LP Cable
- 4 x 2ft. Amphenol, SATA Cable
- 1 x Version 1.01 CD or later
- 1 x Motherboard I/O Shield
Additional Information
- ROHS Compliant
- Dual Channel memory supported
- LSI 1068E Serial-Attached SCSI (SAS) Controller
- Compact Flash (40-pin connector, IDE 1, single channel) slot
Chipsets:
- Intel 7300
- ESB2
BIOS Features:
- 8Mb Flash EEPROM with AMI BIOS
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.2
- ACPI 1.0/2.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 2.3
Support CD Contents:
- BIOS flash upgrade utility
- Device drivers
Hardware Monitoring:
- Monitors for CPU Cores,+1.8V, +3.3V, +5V, ±12V, +3.3V Stdby, +5 Stdby, VBAT, HT, Memory, Chipset
- CPU Core 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
- Total of nine 4-pin fans
- 9 x fans with tachometer monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Support for 3-pins (w/ speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 9x Fan Connectors
- PSU I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
- CPU / System Overheat LED
- Suspend-state Indicator LED
- Chassis intrusion detection
- Chassis intrusion header
- Chipkill Support
- Onboard voltage monitors for CPU cores, Memory Voltage, Chipset Voltage, +1.8V, +3.3V, +5V, +12V 12V, +3.3V standby, +5V standby and VBAT
- Fan status monitor with firmware control
- CPU/chassis temperature monitors
- Low noise fan speed control
- Platform Environment Control Interface (PECI) ready
- CPU fan auto-off in sleep mode
- Pulse Width Modulation (PWM) fan control
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- CPU slow-down on temperature overheat
- CPU thermal trip support for processor protection
- Power-up mode control for recovery from AC power loss
- Chassis intrusion detection
- System resource alert via Supero Doctor III
ACPI Features:
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- ACPI Power Management
- Power-on mode for power recovery
