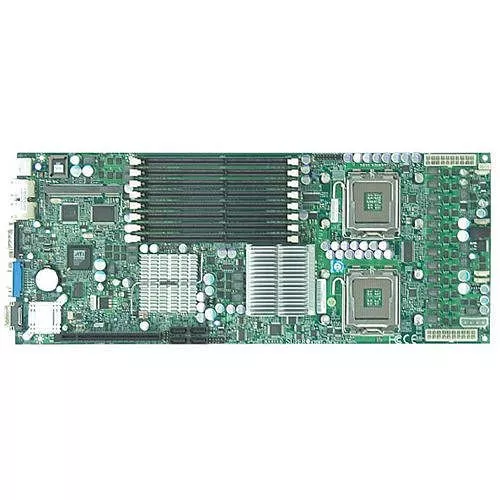

X7DWT-INF Server Board designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
X7DWT-INF Server Board designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7DWT-INF-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DWT-INF
Product Name
X7DWT-INF Server Motherboard
Package Type
Bulk
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5400
Total Processor Supported
2
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket J LGA-771
Processor Supported
Xeon
Front Side Bus
Memory
Number of Memory Slots
8
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Serial ATA/300
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ATI
Graphics Controller Model
ES1000
Graphics Controller Memory
32 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
1
Total Number of PCI Express Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of SATA Interfaces
4
Onboard LEDs Header
Yes
Physical Characteristics
Width
16"
Depth
6.5"
Miscellaneous
Additional Information
- 1 x External Infiniband Connector
Chipset:
- North Bridge : Intel 5400
- South Bridge : Intel ESB2
System BIOS:
- BIOS Type:
- 8Mb Flash EEPROM with Phoenix BIOS
- BIOS Features:
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 1.0/2.0
- USB Keyboard support
- SMBIOS 2.3
Management:
- Software :
- Super Doctor III
- Watch Dog
- NMI
- Power Configurations:
- ACPI Power Management
- Main Switch Override Mechanism
- Wake-On-Ring (WOR) header
- Wake-On-LAN (WOL) header
- Power-on mode for AC power recovery
- Internal / External modem remote ring-on
PC Health Monitoring:
- CPU:
- Monitors for CPU Cores,+1.5V, +3.3V, +5V, ±12V, +3.3V Stdby, +5 Stdby, VBAT, HT, Memory, Chipset
- 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
- FAN:
- Total of four proprietary fan headers supporting up to 8 fans
- 8 x fans with tachometer status monitoring
- Status monitor for speed control
- Temperature:
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8 x fan connectors
- Thermal Monitor 2 (TM2) support
- PECI
Environmentally Friendly
Yes
