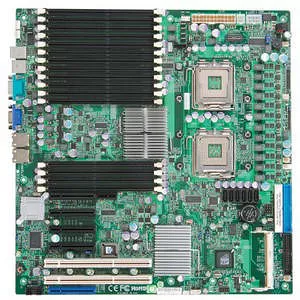

X7DWN+ Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
X7DWN+ Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7DWN+-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DWN+
Product Name
X7DWN+ Server Motherboard
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5400
Total Processor Supported
2
Processor Socket
Socket J LGA-771
Processor Supported
Xeon
Front Side Bus
Memory
Number of Memory Slots
16
Maximum Memory Supported
128 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
ES1000
Graphics Controller Memory
32 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
7
Number of PCI-X Slots
2
Total Number of PCI Express Slots
4
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
3
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
3
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
Extended ATX
Width
13.1"
Depth
13.7"
Miscellaneous
Package Contents
- 1 x X7DWN+ Server Board
- 1 x Motherboard Manual for X7DWN+
- 1 x ATX Floppy Cable
- 1 x ATA 66/100 IDE LP Cable
- 6 x 2ft. Amphenol, SATA Cable
- 1 x Version 1.23 CD
- 1 x Motherboard I/O Shield
Additional Information
- Dual Channel memory supported
Chipsets:
- Intel 5400 (Seaburg)
- ESB2
BIOS Features:
- 8Mb Flash EEPROM with Phoenix BIOS
- EFI BIOS Support
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
Hardware Monitoring:
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
- Total of eight fan headers supporting up to 8 fans
- Four 4-pin fan headers
- Four 3-pin fan headers
- 8x fans with tachometer status monitoring
- Status monitor for speed control
- Support 3-pin fans
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8x fan connectors
- Thermal Monitor 2 (TM2) support
- PECI
- CPU / System Overheat LED
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
- Onboard voltage monitors for CPU cores, chipset voltage, Memory voltage, +1.8V, +3.3V, +3.3V Standby, +5V, +5V Standby, +12V, 12V and Vbatt
- Fan status monitor with firmware control
- CPU/chassis temperature monitors
- Platform Environment CPU fan auto-off in sleep mode Control Interface (PECI) ready
- CPU fan auto-off in sleep mode
- CPU slow-down on temperature overheat
- CPU thermal trip support for processor protection, power LED
- Power-up mode control for recovery from AC power loss
- Auto-switching voltage regulator for CPU cores
- System overheat/Fan Fail LED Indicator and control
- Chassis intrusion detection
- System resource alert via Supero Doctor III
ACPI Features:
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- ACPI Power Management
- Keyboard Wakeup from Soft-off
Support CD Contents:
- BIOS flash upgrade utility
- Device drivers
Environmentally Friendly
Yes
