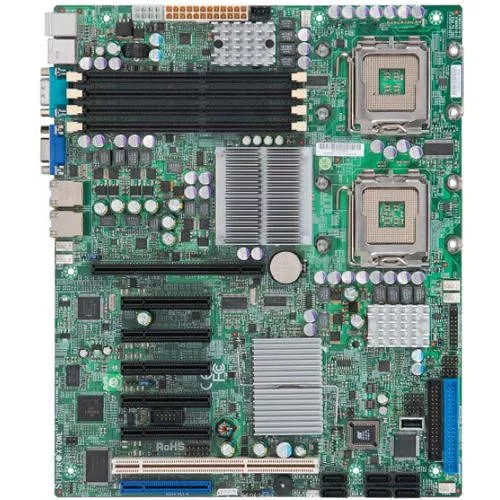

X7DWE Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
X7DWE Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7DWE-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DWE
Product Name
X7DWE Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5400
Total Processor Supported
2
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket J LGA-771
Processor Supported
Front Side Bus
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Maximum Memory Supported
32 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
XGI
Graphics Controller Model
Z9S
Graphics Controller Memory
32 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
8
Number of PCI-X Slots
1
Total Number of PCI Express Slots
5
Number of PCI Express x8 Slots
5
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
ATX
Width
12.1"
Depth
10"
Miscellaneous
Package Contents
- X7DWE Server Board
- Motherboard Manual
- 1 x ATX Floppy Cable
- 1 x ATA 66/100 IDE LP Cable
- 6 x 2ft. Amphenol, SATA Cable
- 1 x CD
- 1 x I/O Shield
Additional Information
- Supports Dual branch memory bus
- Memory must be populated in pairs
- Memory Sparing supported
System BIOS:
- BIOS Type:
- 8Mb Flash EEPROM with Phoenix BIOS
- BIOS Features:
- Plug and Play (PnP)
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
Management:
- Software:
- Super Doctor III
- Watch Dog
- NMI
- Power Configurations:
- ACPI Power Management
- Main Switch Override Mechanism
- Wake-On-Ring (WOR) header
- Wake-On-LAN (WOL) header
- Power-on mode for AC power recovery
PC Health Monitoring:
- CPU:
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +5V Standby, VBAT, Chipset Voltages.
- 4 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
- FAN:
- Total of six 4-pin fan headers supporting up to 6 fans
- 6x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Support 3-pin fans
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Temperature:
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8x fan connectors
- Thermal Monitor 2 (TM2) support
- PECI
- Other Features:
- SDDC Support
ACPI Features:
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- ACPI Power Management
- Keyboard Wakeup from Soft-off
CD/Diskette Utilities:
- BIOS fl ash upgrade utility and device drivers
Environmentally Friendly
Yes
