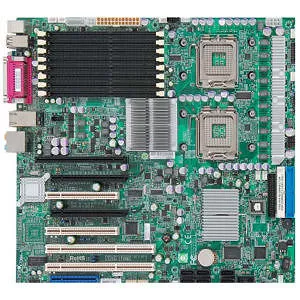

X7DWA-N Server Board designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
X7DWA-N Server Board designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7DWA-N-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DWA-N
Product Name
X7DWA-N Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5400
Total Processor Supported
2
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket J LGA-771
Processor Supported
Xeon
Front Side Bus
Memory
Number of Memory Slots
8
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Audio
Sound Controller Model
ALC 883
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI Slots
2
Number of PCI-X Slots
2
Total Number of PCI Express Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Parallel Port
Yes
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
1
Total Number of Onboard FireWire/i.LINK Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
Extended ATX
Width
13"
Depth
12"
Miscellaneous
Additional Information
- Dual Channel memory supported
Chipsets:
- Intel 5400 (Seaburg)
- ESB2
BIOS Features:
- 8Mb Flash EEPROM with Phoenix BIOS
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
Hardware Monitoring:
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
- 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
- Total of eight 4-pin fan headers supporting up to 8 fans
- 8x fans with tachometer status monitoring
- Status monitor for speed control
- Support 3-pin fans (w/ speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8x fan connectors
- PC temperature sensing logic
- PECI
- Thermal Monitor 2 (TM2) support
- CPU / System Overheat LED
- Suspend-state indicator LED
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
- Onboard voltage monitors for CPU cores, chipset voltage, memory voltage, +1.8V, +3.3V, +5V, +12V, 12V, 3.3V standby, 5V standby and VBAT
- Fan status monitor with firmware speed on/off control
- CPU/chassis temperature monitors
- Platform Environment Control Interface (PECI)
- CPU slow-down on temperature overheat
- CPU thermal trip support for processor protection
- Power-up mode control for recovery from AC power loss
- Auto-switching voltage regulator for CPU core
- System overheat LED and control
- Chassis intrusion detection
- System resource alert
ACPI Features:
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
Support CD Contents:
- BIOS flash upgrade utility
- Device drivers
Environmentally Friendly
Yes
