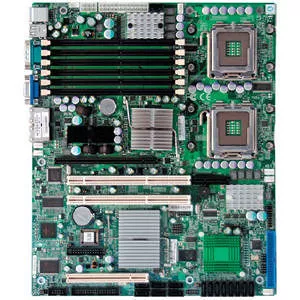

X7DVL-i Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance .
About
X7DVL-i Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance .
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7DVL-i-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DVL-i
Product Name
X7DVL-i Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5000V
Total Processor Supported
2
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket J LGA-771
Processor Supported
Xeon
Front Side Bus
Memory
Number of Memory Slots
6
Maximum Memory Supported
16 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
Volari Z7
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
4
Number of PCI Slots
1
Number of PCI-X Slots
2
Total Number of PCI Express Slots
1
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
10"
Miscellaneous
Additional Information
- ROHS Compliant
- Dual Channel memory supported
Chipsets:
- Intel 5000V (Blackford VS)
- MCH
- ESB2
Hardware Monitoring:
- Onboard voltage monitors for CPU cores, +1.8V, +3.3V, +5V, +12V,12V, +3.3V standby, +5V standby and VBAT
- Fan status monitor with firmware control
- CPU/chassis temperature monitors
- Low noise fan speed control
- Platform Environment Control Interface (PECI) ready
- CPU fan auto-off in sleep mode
- Pulse Width Modulation (PWM) fan control
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- CPU slow-down on temperature overheat
- CPU thermal trip support for processor protection
- Power-up mode control for recovery from AC power loss
- Chassis intrusion detection
- System resource alert via Supero Doctor III
- Fan status monitor for speed control
- Fan status monitor for on/off control
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 6x fan connectors
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
Software:
- Super Doctor III
- Watch Dog
- NMI
