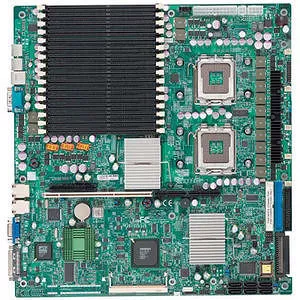

X7DBR-i+ Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
X7DBR-i+ Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7DBR-I+-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DBR-i+
Product Name
X7DBR-i+ Server Motherboard
Packaged Quantity
1
Package Type
Bulk
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5000P
Total Processor Supported
2
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket J LGA-771
Processor Supported
Xeon
Front Side Bus
Memory
Number of Memory Slots
16
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
ES1000
Graphics Controller Memory
16 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
4
Number of PCI-X Slots
1
Total Number of PCI Express Slots
3
Number of PCI Express x8 Slots
3
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Parallel Port
Yes
Serial Port
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Width
13.7"
Depth
13"
Miscellaneous
Package Contents
- X7DBR-i+ Server Board
- Motherboard Manual for X7DBR-i+
- ATX Floppy Cable
- ATA 66/100 IDE LP Cable
- Version 1.01 CD or later
Additional Information
- ROHS Compliant
- Dual Channel memory supported
- Compact Flash (40-pin connector, IDE 1, single channel) slot
Expansion Slot Details:
- Left Universal Slot: (For 1U Systems)
- 1 64-bit 133MHz PCI-X OR
- 1 (x8) PCI-e Slot
- Left Universal Slot: (For 1U Systems)
- 1 64-bit 133MHz PCI-X OR
- 2 (x8) PCI-e Slots OR
- 3 64-bit 133MHz PCI-X
- Right Slot:
- 1 (x8) PCI-e Slot (for 2U)
BIOS Features:
- 8Mb Flash EEPROM with Phoenix BIOS
- Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.1
- PCI 2.2
- PCI-X 1.0
- ACPI 1.0
- USB Keyboard support
- Hardware BIOS Virus protection
Hardware Monitoring:
- Monitors for CPU Cores, +3.3V, +5V,±12V, +1.2V, +1.5V, 5V Standby, VBAT
- 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
- Total of five 3-pin fan headers supporting up to 5 fans
- 5x fans with tachometer status monitoring
- Status monitor for speed control
- Low noise fan speed control
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 5x fan connectors
- PSU I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- CPU / System Overheat LED
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
- Onboard voltage monitors for CPU cores, chipset voltage, +1.8V, +3.3V, +5V, +12V, 12V, +3.3V Standby, +5V standby and VBAT
- Fan status monitor with firmware control
- CPU/chassis temperature monitors
- Low noise fan speed control
- Environmental temperature monitor and control
- Platform Environment Control Interface (PECI) ready
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- CPU slow-down on temperature overheat
- CPU thermal trip support for processor protection, power LED
- Power-up mode control for recovery from AC power loss
- Auto-switching voltage regulator for CPU cores
- System overheat/Fan Fail LED Indicator and control
- Chassis intrusion detection
- System resource alert via Supero Doctor III
ACPI Features:
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- ACPI Power Management
- Power-on mode for power recovery
Support CD Contents:
- BIOS flash upgrade utility
- Device drivers
