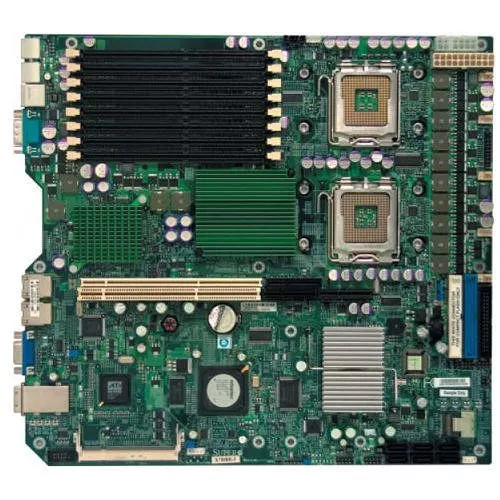

X7DBR-3 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
X7DBR-3 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7DBR-3-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DBR-3
Product Name
X7DBR-3 Server Motherboard
Package Type
Bulk
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5000P
Total Processor Supported
2
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket J LGA-771
Processor Supported
Front Side Bus
64-bit Processing
Yes
Memory
Number of Memory Slots
8
Maximum Memory Supported
32 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
ES1000
Graphics Controller Memory
16 MB
Network & Communication
Gigabit Ethernet
Yes
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Number of SAS Interfaces
8
Total Number of Onboard USB Ports
3
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
Extended ATX
Width
13.1"
Depth
12"
Miscellaneous
Package Contents
- X7DBR-3 Server Board
- Motherboard Manual
- 1 x ATX Floppy Cable
- 1 x ATA 66/100 IDE LP Cable
- 1 x CD
Additional Information
- Supports Dual branch memory bus
- Memory must be populated in pairs
- Memory Mirroring supported
System BIOS:
- BIOS Type:
- 8Mb Flash EEPROM with Phoenix BIOS
- BIOS Features:
- Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.1
- PCI 2.2
- ACPI 1.0
- USB Keyboard support
- Hardware BIOS Virus protection
ACPI Features:
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- ACPI Power Management
- Power-on mode for power recovery
CD/Diskette Utilities:
- BIOS flash upgrade utility and device drivers
Expansion Slot Information:
- Left Universal Slot:
- 1 x 64-bit 133MHz PCI-X
- 1 x (x8) PCI-e Slot
- Right Universal Slot:
- 1 x 64-bit 100MHz PCI-X
- 1 x (x8) PCI-e Slot
Environmentally Friendly
Yes
