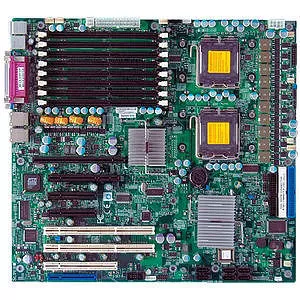

X7DBN Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
X7DBN Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7DBN-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DBN
Product Name
X7DBN Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5000P
Total Processor Supported
2
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket J LGA-771
Processor Supported
Xeon
Front Side Bus
Memory
Number of Memory Slots
8
Maximum Memory Supported
32 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ATI
Graphics Controller Model
ES1000
Graphics Controller Memory
16 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
6
Number of PCI Slots
1
Number of PCI-X Slots
2
Total Number of PCI Express Slots
3
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Parallel Port
Yes
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
2
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
3
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
13"
Miscellaneous
Package Contents
- 1 x X7DBN Server Board
- 1 x Motherboard Manual for X7DBN
- 1 x 9-pin Serial Port Cable
- 1 x ATX Floppy Cable
- 1 x USB 2.0 2-Port Cable w/Key
- 1 x ATA 66/100 IDE LP Cable
- 6 x 2ft. Amphenol, SATA Cable
- 1 x Version 1.10 CD or later
- 1 x Motherboard I/O Shield
Additional Information
ROHS Compliant
Chipsets:
- 5000P (Blackford)
- MCH
- ESB2
Hardware Monitoring:
- Onboard voltage monitors for CPU cores, chipset voltage, +3.3V, +5V, +12V, 12V, +3.3V standby, +5V standby and VBAT
- Fan status monitor with firmware control
- CPU/chassis temperature monitors
- Platform Environment Control Interface (PECI) ready
- CPU fan auto-off in sleep mode
- CPU slow-down on temperature overheat
- CPU thermal trip support for processor protection, power LED
- Power-up mode control for recovery from AC power loss
- Auto-switching voltage regulator for CPU cores
- System overheat/Fan Fail LED Indicator and control
- Chassis intrusion detection
- System resource alert via Supero Doctor III
- 8x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8x fan connectors
- PSU I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- Chassis intrusion header
- SDDC Support
ACPI Features:
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- ACPI/ACPM Power Management
- Keyboard Wakeup from Soft-off
Support CD Contents:
- BIOS flash upgrade utility
- Device drivers
