ABOUT

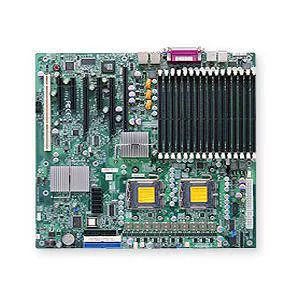

Built upon the functionality and the capability of the 5000P chipset, the X7DBi+ motherboard provides the performance and feature set required for dual processor based servers with configuration options optimized for communications, presentation, storage, computation or database applications.
See More
SPECIFICATIONS
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7DBi+-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DBi+
Product Name
X7DBi+ Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
2
Processor Socket
Socket J LGA-771
Processor Supported
Front Side Bus
64-bit Processing
Yes
Memory
Number of Memory Slots
16
Maximum Memory
64 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ATI
Graphics Controller Model
ES1000
Graphics Controller Memory
16 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
6
Number of PCI-X Slots
1
Total Number of PCI Express Slots
5
Number of PCI Express x4 Slots
3
Number of PCI Express x8 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Parallel Port
Yes
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
3
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
Extended ATX
Width
13.7"
Depth
13"
Miscellaneous
Package Contents
- 1 x X7DBi+ Server Board
- 1 x Motherboard Manual for X7DBi+
- 1 x 9-pin Serial Port Cable
- 1 x ATX Floppy Cable
- 1 x ATA 66/100 IDE LP Cable
- 6 x 2ft. Amphenol, SATA Cable
- 1 x 2-Port USB Cable
- 1 x Version 1.13 CD or later
- 1 x Motherboard I/O Shield
Additional Information
BIOS Features:
- Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.3
- PCI 2.2
- ACPI 1.0/2.0
- USB Keyboard support
Environmentally Friendly
Yes
Environmental Certification
RoHS
