Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7DBE+-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DBE+
Product Name

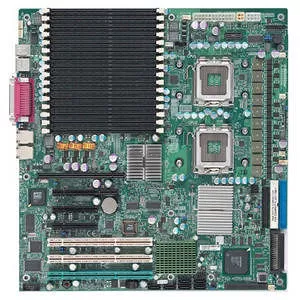

X7DBE+ Server Motherboard
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5000P
Total Processor Supported
2
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket J LGA-771
Processor Supported
Xeon
Front Side Bus
Memory
Number of Memory Slots
16
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
ES1000
Graphics Controller Memory
16 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI-X Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Parallel Port
Yes
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
3
Onboard LEDs Header
Yes
Physical Characteristics
Width
13.7"
Depth
13"
Miscellaneous
Package Contents
- 1 x X7DBE+ Server Board
- 1 x Motherboard Manual for X7DBE+
- 1 x 9-pin Serial Port Cable
- 1 x ATX Floppy Cable
- 1 x ATA 66/100 IDE LP Cable
- 6 x 2ft. Amphenol, SATA Cable
- 1 x 2-Port USB Cable
- 1 x Version 1.01 CD or later
- 1 x Motherboard I/O Shield
Additional Information
ROHS Compliant
Chipset:
- 5000P (Blackford)
- MCH
- PXH
- ESB2
Hardware Monitoring:
- Onboard voltage monitors for CPU cores, chipset voltage, +3.3V, +5V, +5V Standby, +12V, and 12V
- Fan status monitor with firmware control
- CPU/chassis temperature monitors
- Platform Environment Control Interface (PECI) ready
- CPU fan auto-off in sleep mode
- CPU slow-down on temperature overheat
- CPU thermal trip support for processor protection, power LED
- Power-up mode control for recovery from AC power loss
- Auto-switching voltage regulator for CPU cores
- System overheat/Fan Fail LED Indicator and control
- Chassis intrusion detection
- System resource alert via Supero Doctor III
- Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans
- 8x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- CPU thermal trip support
- Thermal Control for 8x fan connectors
- PSU I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
ACPI Features:
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- ACPI/ACPM Power Management
- Keyboard Wakeup from Soft-off
BIOS Features:
- Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.1
- PCI 2.2
- ACPI 1.0
- USB Keyboard support
- Hardware BIOS Virus protection
Support CD Contents:
- BIOS flash upgrade utility
- Device drivers
