About
X7DAE Server Board are designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X7DAE-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DAE
Product Name

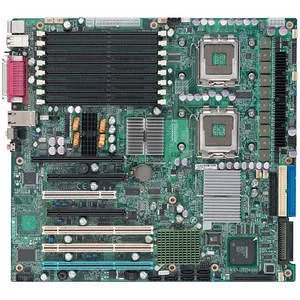

X7DAE Server Motherboard
Packaged Quantity
1
Packing
Box
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5000X
Total Processor Supported
2
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket J LGA-771
Processor Supported
Xeon
Front Side Bus
Memory
Number of Memory Slots
8
Maximum Memory Supported
32 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI Slots
1
Number of PCI-X Slots
3
Total Number of PCI Express Slots
2
Number of PCI Express x4 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Parallel Port
Yes
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
2
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
1
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
13.1"
Miscellaneous
Package Contents
- 1 x X7DAE Server Board
- 1 x Motherboard Manual for X7DAE
- 1 x ATX Floppy Cable
- 1 x ATA 66/100 IDE LP Cable
- 6 x 2ft. Amphenol, SATA Cable
- 1 x Version 1.00 CD or later
- 1 x Motherboard I/O Shield
Additional Information
System BIOS:
- BIOS Types:
- 8Mb Flash EEPROM with Phoenix BIOS
- BIOS Features:
- Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.1
- PCI 2.2
- ACPI 1.0
- PCI-X 1.0
- USB Keyboard support
- Hardware BIOS Virus protection
