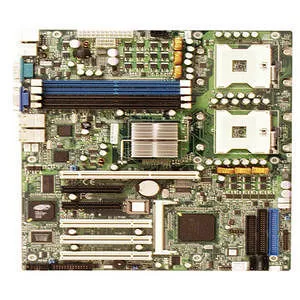

X6DVL-EG2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
X6DVL-EG2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X6DVL-EG2-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X6DVL-EG2
Product Name
X6DVL-EG2 Server Motherboard
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
E7320
Total Processor Supported
2
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket PGA-604
Processor Supported
Xeon
Front Side Bus
800 MHz
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
DDR2-400/PC2-3200
Memory Technology
DDR2 SDRAM
Memory Speed Supported
400 MHz
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
Rage-XL
Graphics Controller Memory
8 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI Slots
4
Total Number of PCI Express Slots
2
Number of PCI Express x4 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
PS/2 Port
Yes
Number of PS/2 Ports
2
Onboard Interfaces
Number of IDE Interfaces
2
Number of SATA Interfaces
2
Total Number of Onboard USB Ports
1
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
ATX
Width
10"
Depth
12"
Miscellaneous
Package Contents
- 1 x X6DVL-EG2 Server Board
- 1 x Motherboard Manual for X6DVL-EG2
- 1 x 9-pin Serial Port Cable
- 1 x ATX Floppy Cable
- 1 x ATA 66/100 IDE LP Cable
- 1 x 2ft. Amphenol, SATA Cable
- 1 x Version 1.20 CD or later
- 1 x Motherboard I/O Shield
- 1 x CPU mounting plate
Additional Information
BIOS Features:
- Plug and Play (PnP)
- ACPI 1.0
- APM 1.2
- DMI 2.3
- PCI 2.2
- SMBIOS 2.3
- Hardware BIOS Virus protection
- USB Keyboard Support
