About
Specifications
The X5DP8-G2 supports single or dual Intel 604-pin Xeon processors at up to 3.20 GHz at a 533/400 MHz front side bus, up to 16 GB system memory, gigabit ethernet controller and 6 PCI-X expansion slots.
About
The X5DP8-G2 supports single or dual Intel 604-pin Xeon processors at up to 3.20 GHz at a 533/400 MHz front side bus, up to 16 GB system memory, gigabit ethernet controller and 6 PCI-X expansion slots.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X5DP8-G2-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X5DP8-G2
Product Name

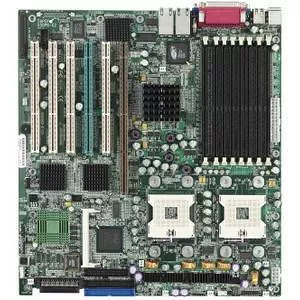

X5DP8-G2 Server Motherboard
Packaged Quantity
1
Packing
Box
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
E7501
Total Processor Supported
2
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket PGA-604
Processor Supported
Xeon
Front Side Bus
Memory
Number of Memory Slots
8
Maximum Memory Supported
16 GB
Memory Standard
DDR200/PC1600
Memory Technology
DDR SDRAM
Memory Speed Supported
200 MHz
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
Rage-XL
Graphics Controller Memory
8 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI-X Slots
6
Interfaces/Ports
Total Number of USB Ports
2
Parallel Port
Yes
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
2
Number of SCSI Interfaces
1
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
13.1"
Miscellaneous
Package Contents
- 1 x X5DP8-G2 Motherboard
- 1 x Manual for X5DP8-G2
- 1 x Ultra320 SCSI Manual
- 2 x Heatsink Retention with 604-pin socket
- 2 x Active Heat Sink with Copper fin
- 1 x 9 pin Serial Port Cable
- 1 x ATX Floppy Cable
- 1 x One Head USB Cable with Bracket
- 1 x LVD Ultra320 SCSI Cable
- 1 x ATA 66/100 IDE LP Cable
- 1 x Version 1.0 Chipset driver CD
- 1 x I/O Shield for dual LAN
Additional Information
Chipset:
- The Intel E7501 chipset consists of four major components:
- The Memory Controller Hub (MCH)
- The I/O Controller Hub 3 (ICH3)
- The PCI-X 64-bit Hub 2.0 (P64H2)
- The 82808AA Host Channel Adapter (VxB)
Memory Controller Hub (MCH):
- Has four hub interfaces, one to communicate with the ICH3 and three for high-speed I/O communications
- Employs a 144-bit wide memory bus for a DDR-266 memory interface, which provides a total bandwidth of 4.2 GB/s (3.2 GB/s for DDR-200)
I/O Controller Hub 3 (ICH3):
- Provides various integrated functions, including:
- Two-channel UDMA100 bus master IDE controller
- USB host controllers
- System Management Bus controller
- AC'97 compliant interface
PCI-X 64-bit Hub 2.0 (P64H2):
- Provides a 16-bit connection to the MCH for high-performance IO capability and two 64-bit PCI-X interfaces
BIOS Features:
- Plug n Play
- SMBIOS 2.3
- APM 1.2
- DMI 2.1
- PCI 2.2
- ACPI 1.0
- Hardware BIOS virus protection
Warranty
Limited Warranty
3 Year
