SMC-MBD-X12SCZ-F-B-00
MPN: MBD-X12SCZ-F-B

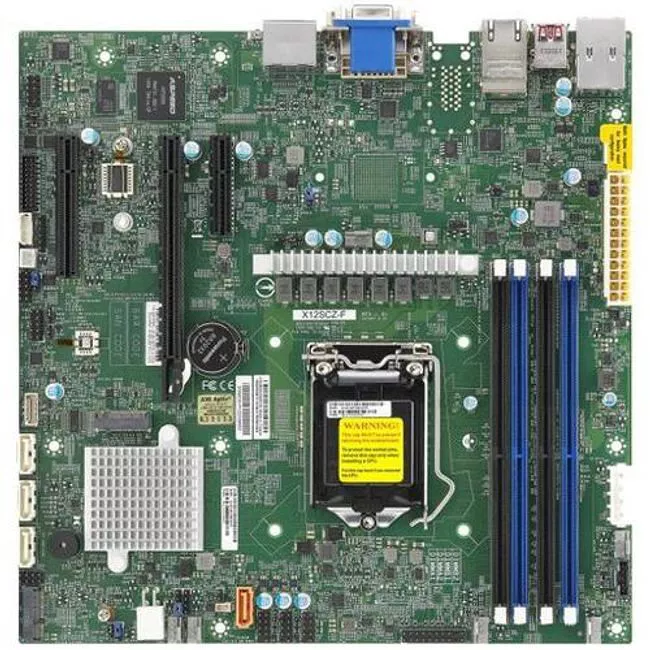

Supermicro MBD-X12SCZ-F-B Desktop Motherboard - 1x Socket LGA-1200 - Intel W480 - 4x DDR4 - Micro ATX - 1x PCIe x16 - 2x M.2 - RAID - 2x RJ-45

Highlights
Processor Socket:
Socket LGA-1200
Total Processor Supported:
1
Memory Technology:
DDR4 SDRAM
Maximum Memory:
128 GB
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X12SCZ-F-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X12SCZ-F
Product Name
X12SCZ-F Desktop Motherboard
Packaged Quantity
1
Package Type
Bulk
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
W480
Total Processor Supported
1
Processor Socket
Socket LGA-1200
Processor Supported
  • Xeon
  • Core i3
  • Core i5
  • Core i7
  • Core i9
  • Celeron
  • Pentium
    • Memory
    Number of Memory Slots
    4
    Memory Form Factor
  • DIMM
  • UDIMM
    • Maximum Memory Supported
    128 GB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
  • 2933 MHz
  • 2666 MHz
  • 2400 MHz
  • 2133 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    AST2500
    Audio
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    3
    Total Number of PCI Express Slots
    3
    Number of PCI Express x4 Slots
    1
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.2 Ports
    4
    VGA
    Yes
    DisplayPort
    Yes
    DVI
    Yes
    Number of Network (RJ-45) Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Number of M.2 Interfaces
    2
    Total Number of Onboard USB Ports
    8
    Number of Onboard USB 2.0 Ports
    6
    Number of Onboard USB 3.2 Ports
    2
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    9.6"
