UP Xeon® Motherboards - Socket H4 (LGA 1151)
Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)
Supermicro's single processor Socket H4 designs feature the Intel® C236 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
See More
SPECIFICATIONS
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X11SSZ-TLN4F-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X11SSZ-TLN4F
Product Name

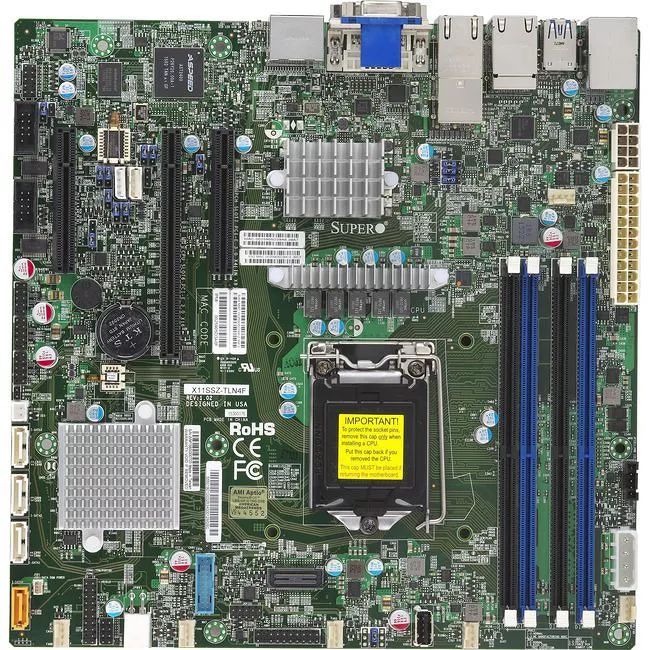

X11SSZ-TLN4F Server Motherboard
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
Memory
Number of Memory Slots
4
Memory Form Factor
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Gigabit Ethernet
Yes
10Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
2
VGA
Yes
DisplayPort
Yes
DVI
Yes
Onboard Interfaces
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
9
Number of Onboard USB 3.0 Ports
2
Physical Characteristics
Form Factor
Micro ATX
Width
9.6"
Depth
9.6"
Miscellaneous
Compatibility
Supermicro SuperChassis
1U Chassis:
1U Chassis:
- SC512-203B
- SC512F-350B
- SC514-441
- SC514-R400C
- SC515-505
- SC813MTQ-280CB
- SC813MTQ-350CB
- SC825MTQ-R700LPB
- SC823MTQ-R700LPB
- SC731i-300B
- SC842i-500B
