SMC-MBD-X11SCL-F-O-00
MPN: MBD-X11SCL-F-O

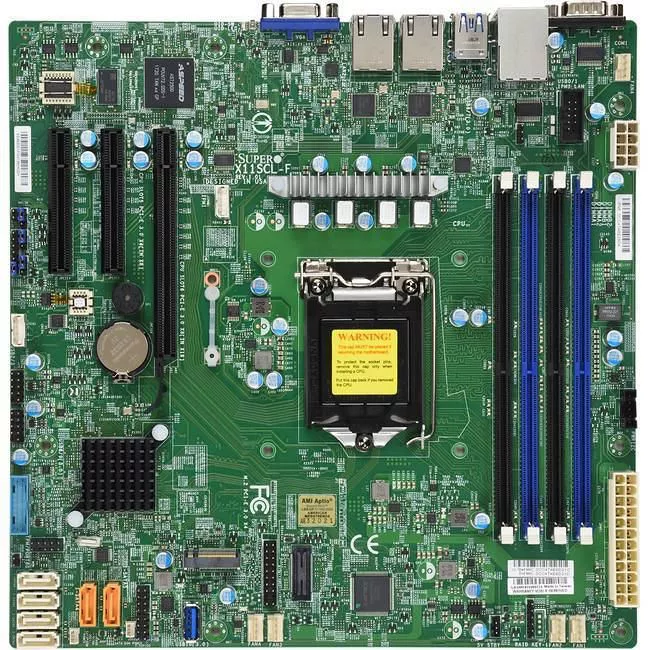

Supermicro MBD-X11SCL-F-O Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Micro ATX

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X11SCL-F-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X11SCL-F
Product Name
X11SCL-F Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C242
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
  • Core i3
  • Pentium
  • Celeron
  • Xeon
    • Memory
    Number of Memory Slots
    4
    Memory Form Factor
  • UDIMM
  • DIMM
    • Maximum Memory Supported
    128 GB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
  • 2667 MHz
  • 2400 MHz
  • 2133 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    AST2500
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    3
    Total Number of PCI Express Slots
    3
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    2
    Number of USB 3.1 Ports
    2
    VGA
    Yes
    Number of Network (RJ-45) Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Number of M.2 Interfaces
    1
    Total Number of Onboard USB Ports
    7
    Number of Onboard USB 2.0 Ports
    4
    Number of Onboard USB 3.1 Ports
    3
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • X11SCL-F Server Motherboard
    • 6 x I/O Cables
    • 1 x I/O Shield
    • 1 x Quick Reference Guide
    Compatibility

    Chassis 1U

    • SC813MFTQC-R407CB
    • SC514-R407C
    • SC515-R407
    • SC113MTQ-R400CB
    • 1U Heatsink:SNK-P0046P

    Mid/Mini-Tower

    • SC731i-403B
    • 2U Heatsink:SNK-P0046A4

    Server

    • SYS-5039C-I
    Warranty
    Limited Warranty
    1 Year
