SMC-MBD-X11SBA-LN4F-O-00
MPN: MBD-X11SBA-LN4F-O

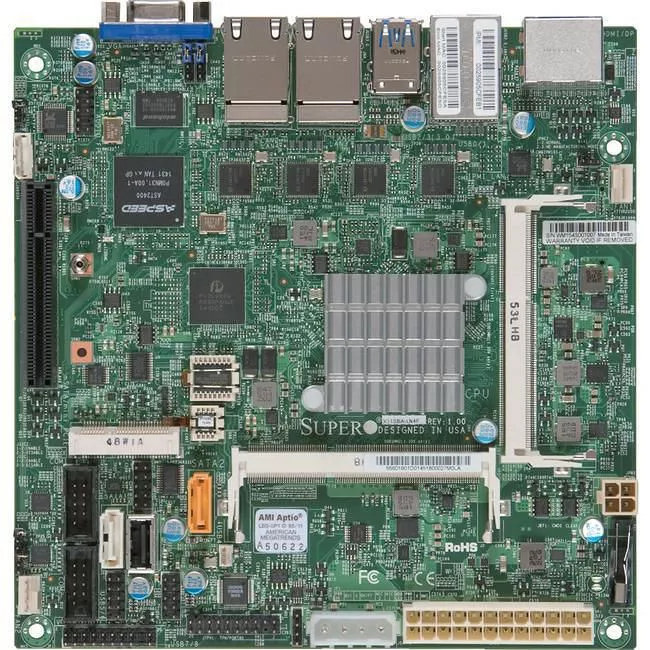

Supermicro MBD-X11SBA-LN4F-O Server Motherboard - Intel N3710 - BGA 1170

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X11SBA-LN4F-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X11SBA-LN4F
Product Name
X11SBA-LN4F Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket BGA-1170
Integrated Processor
Integrated Processor Type
Pentium
Integrated Processor Model
N3700
Integrated Processor Core
Quad-core (4 Core)
Memory
Number of Memory Slots
2
Memory Form Factor
SoDIMM
Maximum Memory Supported
8 GB
Memory Standard
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    AST2400
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    1
    Total Number of PCI Express Slots
    1
    Number of PCI Express x8 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    2
    Number of USB 3.0 Ports
    2
    VGA
    Yes
    HDMI
    Yes
    DisplayPort
    Yes
    Number of Network (RJ-45) Ports
    5
    Onboard Interfaces
    Number of SATA Interfaces
    2
    Total Number of Onboard USB Ports
    5
    Number of Onboard USB 2.0 Ports
    5
    Physical Characteristics
    Form Factor
    Mini ITX
    Width
    6.7"
    Depth
    6.7"
    Miscellaneous
    Package Contents
    • X11SBA-LN4F Server Motherboard
    • 1 x Quick Reference Guide
    • 2 x I/O Cables
    • 1 x I/O Shield
    Compatibility

    Chassis:

    • SC504-203B
    • SC505-203B
    Country of Origin
    Taiwan
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    1 Year
