SMC-MBD-X11SAA-O-00
MPN: MBD-X11SAA-O

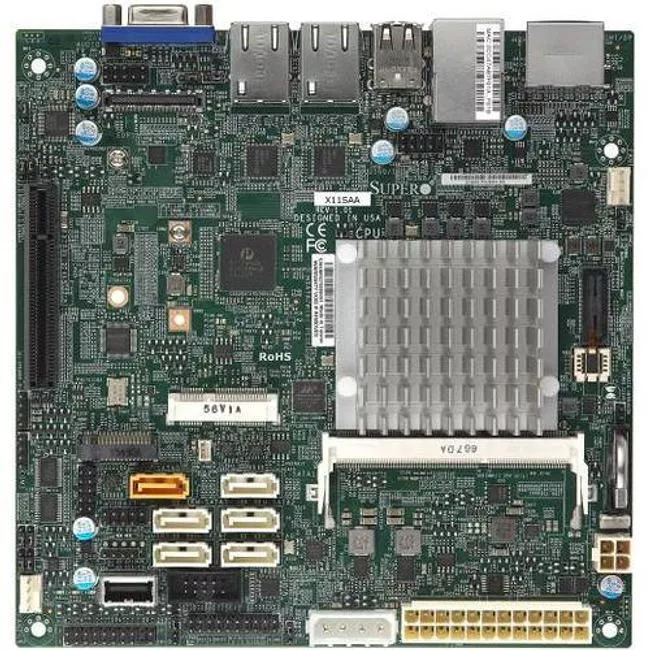

Supermicro MBD-X11SAA-O Motherboard - Intel N4200 - BGA 1296

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X11SAA-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X11SAA
Product Name
X11SAA Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Processor Socket
Socket BGA-1296
Integrated Processor
Integrated Processor Type
Pentium
Integrated Processor Model
N4200
Integrated Processor Core
Quad-core (4 Core)
Memory
Number of Memory Slots
1
Memory Form Factor
SoDIMM
Maximum Memory Supported
8 GB
Memory Technology
  • DDR3 SDRAM
  • DDR3L SDRAM
    • Memory Speed Supported
    1866 MHz
    I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 10
  • 5
  • 1
  • 0
    • Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Model
    HD Graphics
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    2
    Total Number of PCI Express Slots
    1
    Number of PCI Express x8 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    2
    VGA
    Yes
    HDMI
    Yes
    DisplayPort
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Number of M.2 Interfaces
    1
    Total Number of Onboard USB Ports
    5
    Physical Characteristics
    Form Factor
    Mini ITX
    Width
    6.7"
    Depth
    6.7"
    Miscellaneous
    Compatibility
    Supermicro SuperChassis

    1U:
    • SC504-203B
    • SC505-203B
    Mid/Mini-Tower:
    • SC721TQ-250B
