About

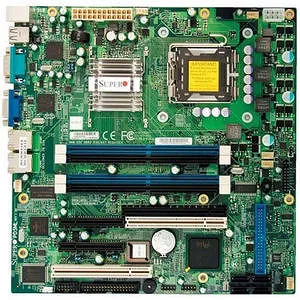

PDSML-LN2 Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-PDSML-LN2-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
PDSML-LN2
Product Name
PDSML-LN2 Desktop Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
E7230
Total Processor Supported
1
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
XGI
Graphics Controller Model
XG20
Graphics Controller Memory
16 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
3
Number of PCI Slots
1
Total Number of PCI Express Slots
1
Number of PCI Express x4 Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
4
Onboard LEDs Header
Yes
Physical Characteristics
Width
9.6"
Depth
9.6"
Miscellaneous
Package Contents
- 1 x PDSML-LN2 Desktop Board
- 1 x Motherboard Manual for PDSML-LN2
- 1 x ATX Floppy Cable
- 1 x ATA 66/100 IDE LP Cable
- 4 x SATA Cable (2Ft.)
- 1 x Version 1.21 (or newer) CD
- 1 x I/O Shield for PDSML-LN2
Additional Information
- ROHS Compliant
- Dual Channel memory supported
Chipsets:
- Intel E7230 (Mukilteo) Smithfield
- ICH7R
- Intel 82573V/L
BIOS Features:
- 8Mb Flash EEPROM with Phoenix BIOS
- Plug and Play (PnP)
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0
- ACPI 1.0 (limited)
- USB Keyboard support
- SMBIOS 2.3
Support CD Contents
- Drivers
- Software for Intel E7230 chipset utilities
Hardware Monitoring:
- Monitors for CPU Cores +1.8V, +3.3V, +5V, ±12V, +5V Standby
- CPU 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
- Total of six 4-pin fan headers
- 6 fans with tachometer monitoring
- Status monitor with firmware speed control
- Low noise fan speed control
- Status monitor for on/off control
- Support 3-pin fans (without speed control)
- Pulse Width Modulated (PWM) fan connector
- Monitoring for CPU and chassis environment
- Thermal Monitor 2 (TM2) support
- CPU Thermal Trip support
- +3.3V Standby Alert LED
- CPU / system overheat LED
- Chassis Intrusion Detection
- Chassis Intrusion Header
- Onboard voltage monitors for CPU core, Chipset Voltage, Memory Voltage, +3.3V, +5V, +5V Standby, +12V, and 12V
- CPU 4-phase-switching voltage regulator
- Status monitor for fan speed & System Overheat/Fan Fail LED/Control
- Pulse Width Modulation Fan Control & Low noise fan speed control
- Environmental temperature monitoring via BIOS, PWR-Up from AC PWR loss
- SuperDoctor III
- NMI
- System Resource alert via SuperDoctor III
ACPI Features:
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard/Mouse
- Main switch override mechanism
- Internal/external modem ring-on
Supported Operating Systems:
- MS Win 2000 Pro + SP4
- MS Win 2000 Server + SP4
- MS Win 2000 Advanced Server + SP4
- MS Win XP Pro + SP2
- MS Win 2003 Server Standard Edition
- MS Win 2003 Server Enterprise Edition
- MS Win XP Pro x64 (1218)
- MS Win 2003 Server x64 (1218)
- Redhat Linux 9.0
- Redhat Advanced Server 2.1
- Redhat Enterprise Linux ES v3.0
- Redhat Enterprise Linux ES v4.0
- SuSE Linux 9.1
- SuSE Linux 9.2
- Fedora Core 3
- Fedora Core 4
- Fedora Core 3 x64
