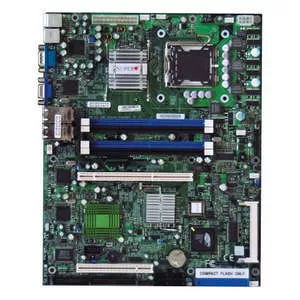

The PDSMi-LN4 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
The PDSMi-LN4 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-PDSMI-LN4-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
PDSMi-LN4
Product Name
PDSMi-LN4 Server Motherboard
Packing
Box
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
E7230
Total Processor Supported
1
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
RageXL
Graphics Controller Memory
8 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
2
Number of PCI Slots
1
Number of PCI-X Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Parallel Port
Yes
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
ATX
Width
12"
Depth
9.6"
Miscellaneous
Package Contents
- PDSMi-LN4 Server Board
- 1 x IDE cable
- 1 x floppy drive ribbon cable
- 4 x SATA cables
- 1 x I/O Shield
- 1 x Supermicro CD containing drivers and utilities
- 1 x User/BIOS Manual
Additional Information
- Will not support E2000 processors
- IPMI 2.0 Support
- Thermal Optimized 1U & 4LAN Design
System BIOS
- BIOS Type: 8Mb Flash EEPROM with Phoenix BIOS
- Plug and Play (PnP)
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0
- USB Keyboard support
Warranty
Limited Warranty
3 Year
