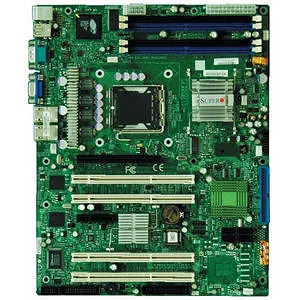

Supermicro PDSME Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
Supermicro PDSME Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-PDSME-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
PDSME
Product Name
PDSME Desktop Motherboard
Package Type
Bulk
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
E7230
Total Processor Supported
1
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
Rage-XL
Graphics Controller Memory
8 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
5
Number of PCI-X Slots
4
Total Number of PCI Express Slots
1
Number of PCI Express x4 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
9.6"
Miscellaneous
Additional Information
Compliant Standard: RoHS
System BIOS:
- BIOS Type:
- 8Mb Flash EEPROM with Phoenix BIOS
- BIOS Features:
- Plug and Play (PnP)
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0
- Hardware BIOS Virus protection
- SMBIOS 2.3
- USB Keyboard support
- PCI-X - 1.0
