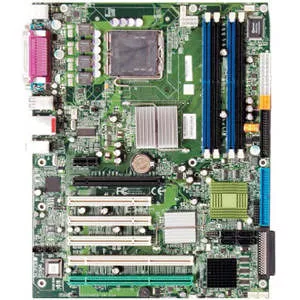

PDSG4 Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
PDSG4 Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-PDSG4-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
PDSG4
Product Name
PDSG4 Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
955X
Total Processor Supported
1
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Audio
Audio Channels
5.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
7
Number of PCI Slots
3
Number of PCI-X Slots
2
Total Number of PCI Express Slots
2
Number of PCI Express x1 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Parallel Port
Yes
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
4
Number of SCSI Interfaces
1
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Onboard Audio Header
Yes
Physical Characteristics
Width
12"
Depth
9.6"
Miscellaneous
Additional Information
Chipset:
- The Intel 955X chipset comprises of two primary components:
- Memory Controller Hub (MCH)
- I/O Controller Hub (ICH7R)
Memory Controller Hub (MCH):
- The function of the MCH is to manage the data fl ow between four interfaces:
- CPU interface
- DDR2 System Memory Interface
- PCI Express Interface
- Direct Media Interface (DMI)
The I/O Controller (ICH7R):
- Provides the data buffering and interface arbitration required for the system to operate efficiently
- Also provides the bandwidth needed for the system to maintain its peak performance
Hardware Monitoring:
- Monitors for CPU Cores, +1.5V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT
- Adjustable CPU clock frequency ratio settings (via BIOS)
- CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
- 5 fans with tachometer monitoring
- Status monitor with firmware/software on/off control
- Support 4-pin PWM fans (with speed control)
- Monitoring for CPU, chassis, environment
- CPU thermal trip support
- Thermal Monitor (TM2) Support
- CPU Overheat LED
- System Overheat LED
- +5V standby alert LED
- Suspend-state indicator LED
- Onboard voltage monitors for CPU core, Chipset Voltage, Memory Voltage, +3.3V, +3.3V standby, +5V, +5V standby, +12V,12V and VBAT
- Fan status monitor with firmware speed control
- SuperDoctor III
- NMI
- Environmental temperature monitoring via BIOS/SD III
- Power-up mode control for recovery from AC power loss
- System overheat/Fan Fail LED and control
- System resource alert via Supero Doctor III
ACPI Features:
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
BIOS Features:
- 8Mb Flash EEPROM with AwardBIOS
- User Over-Clock in System BIOS
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0
- BIOS rescue hot keys
- USB Keyboard support
Support CD Contents:
- BIOS flash upgrade utility
- Drivers
- Software for Intel 955X chipset utilities
