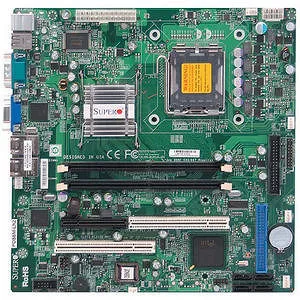

PDSBM-LN2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
PDSBM-LN2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-PDSBM-LN2-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
PDSBM-LN2
Product Name
PDSBM-LN2 Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
946GZ
Total Processor Supported
1
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
Memory
Number of Memory Slots
2
Maximum Memory Supported
4 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
3
Number of PCI Slots
2
Total Number of PCI Express Slots
1
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Width
9.6"
Depth
9.6"
Miscellaneous
Package Contents
- 1 x PDSBM-LN2 Server Board
- 1 x Motherboard Manual for PDSBM-LN2
- 1 x ATX Floppy Cable
- 1 x ATA 66/100 IDE LP Cable
- 4 x SATA Cable (2Ft.)
- 1 x Version 1.30 (or newer) CD
- 1 x I/O Shield for PDSBM-LN2
Additional Information
- ROHS Compliant
- Dual Channel memory supported
BIOS Features:
- 8Mb Flash EEPROM with PhoenixBIOS
- Winbond W39V080FAP
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 2.3
Hardware Monitoring:
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT, HT, Memory, Chipset
- CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
- Total of five 4-pin fan headers
- 5 x fans with tachometer monitoring
- Status monitor for speed control
- Status monitor for on / off control
- Support 3-pin PWM fans (with speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan conn
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8x Fan Connectors
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) Support
- PECI
- CPU / System Overheat LED
- Suspend-state indicator LED
- +5V standby alert LED
- Chassis intrusion Detection
- Chassis intrusion Header
- SDDC Support
- Onboard voltage monitors for CPU core, Memory Voltage, Chipset Voltage, +1.8V, +3.3V, +3.3V standby, +5V, +5V, Standby, VBat and ±12V
- Fan status monitor with firmware 4-pin (Pulse Width Modulation) and 3-pin (Tachometer) fan speed control
- Low noise fan speed control
- CPU 4-Phase-switching voltage regulator
- SuperoDoctor III
- Watch Dog
- NMI
- Power-up mode control for recovery from AC power loss
- I2C temperature sensing logic
- CPU/System overheat LED and control
- System resource alert via Supero Doctor III
- CPU Thermal Trip support
- Thermal Monitor 2 (TM2) support
- PECI (Platform Environment Configuration Interface) support
ACPI Features:
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- External modem ring-on
Support CD Contents:
- BIOS flash upgrade utility
- Drivers
- Software for Intel 946GZ chipset utilities
