PDSBE Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
PDSBE Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-PDSBE-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
PDSBE
Product Name

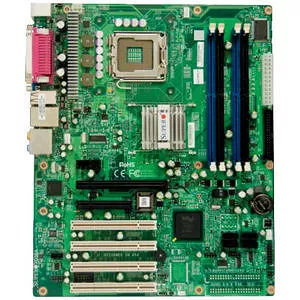

PDSBE Desktop Motherboard
Package Type
Bulk
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
P965 Express
Total Processor Supported
1
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Audio
Sound Controller Model
ALC 883
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
7
Number of PCI Slots
4
Total Number of PCI Express Slots
3
Number of PCI Express x1 Slots
1
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Parallel Port
Yes
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
2
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
4
Onboard LEDs Header
Yes
Onboard Audio Header
Yes
Physical Characteristics
Width
11.5"
Depth
9.5"
Miscellaneous
Additional Information
- ROHS Compliant
- Dual Channel memory supported
Chipsets:
- Intel P965
- ICH8
- InteL 82573L
Hardware Monitoring:
- Onboard voltage monitors for +1.8V, CPU core, +3.3V, +3.3V standby, +5V, Vbat (battery voltage) and ±12V
- Fan status monitor with firmware 4 pin fan speed control
- CPU 3-Phase-switching voltage regulator
- SuperDoctor III, Watch Dog, NMI
- Power-up mode control for recovery from AC power loss
- CPU/System overheat LED and control
- System resource alert via Supero Doctor III
- Auto-switching voltage regulator for the CPU core
- CPU Thermal Trip support
- Thermal Monitor 2 (TM2) support
ACPI Features:
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- External modem ring-on
Support CD Contents:
- BIOS flash upgrade utility
- Drivers
- Software for Intel P965 chipset utilities
