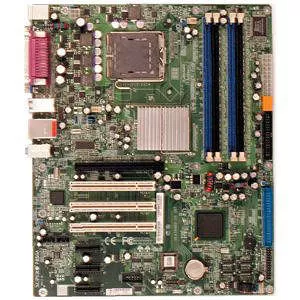

P8SGA Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
P8SGA Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-P8SGA-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
P8SGA
Product Name
P8SGA Desktop Motherboard
Package Type
Bulk
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
915G
Total Processor Supported
1
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
Memory
Number of Memory Slots
4
Maximum Memory Supported
4 GB
Memory Standard
Memory Technology
DDR SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Audio
Audio Channels
5.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
7
Number of PCI Slots
3
Total Number of PCI Express Slots
4
Number of PCI Express x1 Slots
3
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Parallel Port
Yes
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
1
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
9.5"
Miscellaneous
Additional Information
Dual Channel memory supported
Chipsets:
- 915G
- ICH6
- FWH
- Intel 82541GI
- Winbond 83627HF
BIOS Features:
- 4Mb Flash EEPROM with AwardBIOS
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0
- BIOS rescue hot keys
- USB Keyboard support
Hardware Monitoring:
- Eight onboard voltage monitors for CPU core, +3.3V, +3.3V standby, +5V, +1.5V, Vbat (battery voltage) and ±12V
- Fan status monitor with firmware/software 4 pin fan speed control
- SuperDoctor III
- Watch Dog
- NMI
- Environmental temperature monitoring via BIOS
- Power-up mode control for recovery from AC power loss
- System overheat LED and control
- System resource alert via Supero Doctor III
- Auto-switching voltage regulator for the CPU core
- Monitors for CPU Cores, +3.3V, +5, ±12V, +3.3V/+5V Standby, VBAT
- CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
- Adjustable CPU clock frequency ratio settings (via BIOS)
- Total of three 4-pin fan headers
- 3 x fans with tachometer monitoring
- Status monitor with firmware / software speed control
- Support 3-pin fans (without speed control)
- Monitoring for CPU, chassis, environment
- CPU thermal trip support
- CPU / System Overheat LED
- +5V standby alert LED
- Suspend-state indicator LED
- Chassis intrusion detection
- Chassis intrusion header
ACPI Features:
- Microsoft OnNow
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
Support CD Contents:
- BIOS flash upgrade utility
- Drivers
- Software for Intel 915G chipset utilities
