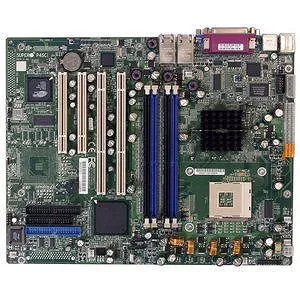

P4SCi Workstation Board supports single Intel Pentium 4 processors or Celeron processors up to 3.40 GHz (with Hyper Threading) at a system bus speed of 800/533/400 MHz. Pentium 4/Celeron processors are housed in a 478-pin micro PGA (Plastic Grid Array) package.
About
P4SCi Workstation Board supports single Intel Pentium 4 processors or Celeron processors up to 3.40 GHz (with Hyper Threading) at a system bus speed of 800/533/400 MHz. Pentium 4/Celeron processors are housed in a 478-pin micro PGA (Plastic Grid Array) package.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-P4SCi-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
P4SCi
Product Name
P4SCi Workstation Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Workstation Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
E7210
Total Processor Supported
1
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket PGA-478
Processor Supported
Front Side Bus
Memory
Number of Memory Slots
4
Maximum Memory Supported
4 GB
Memory Standard
Memory Technology
DDR SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
Rage-XL
Graphics Controller Memory
8 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
4
Number of PCI Slots
2
Number of PCI-X Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Parallel Port
Yes
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
2
Number of SATA Interfaces
2
Total Number of Onboard USB Ports
1
Onboard LEDs Header
Yes
Power Description
Power Supply Supported
ATX12V
Physical Characteristics
Width
12"
Depth
9.5"
Miscellaneous
Package Contents
- 1 x P4SCi Motherboard
- 1 x Manual for P4SCi
- 1 x 478 Pin CPU Retention Module
- 1 x 9-pin Serial Port Cable
- 1 x ATX Floppy Cable
- 1 x ATA 66/100 IDE LP Cable
- 2 x 2 Ft. Amphenol Serial ATA Cable
- 1 x Version 1.10 Chipset Driver CD
- 1 x I/O Shield For Dual LAN
Additional Information
Chipset:
- The Intel E7210 chipset consists of following main components:
- The Memory Controller Hub (MCH)
- The I/O Controller Hub (6300ESB ICH)
Memory Controller Hub (MCH):
- Arbitrates the flow of data transfer between system bus (FSB), system memory, and Hub Interface
- Supports two 64-bit wide DDR data channels with bandwidth up to 6.4 GB/s (DDR400) in dual channel mode
I/O Controller Hub (6300ESB ICH):
- Integrates many I/O functions. functions, including:
- 2-channel Ultra ATA/100 Bus Master IDE Controller
- Two Serial ATA (SATA) Host Controllers
- LPC/Flash BIOS Interface
- PCI-X (66MHz) 1.0 Interface
- PCI 2.3 Interface
- System Management Controller
BIOS Features:
- BIOS rescue hot keys
- Hardware BIOS virus protection
- USB Keyboard support
Warranty
Limited Warranty
3 Year
