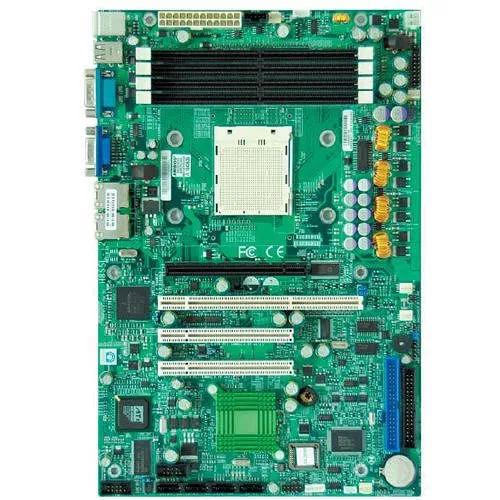

H8SSL-i2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
H8SSL-i2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8SSL-I2-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8SSL-i2
Product Name
H8SSL-i2 Server Motherboard
Package Type
Bulk
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Broadcom
Chipset Model
Serverworks HT-1000
Total Processor Supported
1
Processor Technology
HyperTransport Technology
Processor Socket
Socket PGA-940
Processor Supported
Opteron Dual-Core
HyperTransport Speed (MHz)
800
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
ES1000
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
3
Number of PCI Slots
2
Number of PCI-X Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
4
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
ATX
Width
12"
Depth
8"
Miscellaneous
Additional Information
System BIOS:
- BIOS Type:
- 4Mb Flash EEPROM with AMI BIOS
- SST-49LF004B BIOS Chip
- BIOS Features:
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 1.0
- BIOS Rescue Hot Keys
- SMBIOS 2.3
- USB Keyboard support
- Hardware BIOS Virus Protection
ACPI Features:
- Microsoft OnNow
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
CD Utilities:
- BIOS flash upgrade utility
Environmentally Friendly
Yes
