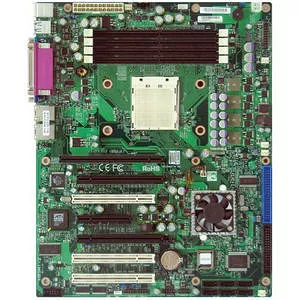

H8SMi-2 Workstation Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
H8SMi-2 Workstation Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8SMI-2-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8SMi-2
Product Name
H8SMi-2 Workstation Motherboard
Package Type
Bulk
Product Type
Workstation Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
MCP55 Pro
Total Processor Supported
1
Processor Technology
HyperTransport Technology
Processor Socket
Socket PGA-940
Processor Supported
Opteron
HyperTransport Speed (MHz)
1000
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
ES1000
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Parallel Port
Yes
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
4
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
9.6"
Miscellaneous
Additional Information
- ROHS Compliant
- Dual Channel memory supported
BIOS Features:
- 4Mb Flash EEPROM with AMI BIOS
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- BIOS Rescue Hot Keys
- SMBIOS 2.3
- USB Keyboard support
- Hardware BIOS Virus Protection
Support CD Contents
- BIOS flash upgrade utility
Hardware Monitoring:
- Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT
- Monitor for HyperTransport voltage 1.2V, DDR termination 1.25V
- CPU switching voltage regulator
- Total up to five 3-pin fan headers
- 5 Fan Status Tachometer monitoring
- Status Monitor for Speed Control
- Monitoring for CPU and chassis environment
- CPU Thermal Trip support
- I2C temperature sensing logic
- CPU / Overheat LED
- Suspend-state indicator LED
- +5V Standby Alert LED
- Chassis Intrusion Header
- Chassis Intrusion Detection
- Chipkill Support
- Onboard voltage monitors for CPU core, 3.3V Vcc, +5Vin, +12Vin, 5V standby and battery voltage
- Fan status monitor with fi rmware/software on/off and speed control
- Watch Dog
- Environmental temperature monitoring via BIOS
- Power-up mode control for recovery from AC power loss
- System resource alert
- Pulse Width Modulated (PWM) fan connectors
- Auto-switching voltage regulator for the CPU core
Supported Operating Systems:
- MS Win XP Pro + SP2
- MS Win 2003 Ent
- MS Win Vista
- MS Win XP Pro x64
- MS Win XP Pro x64
- MS Win Vista
- RedHat Linux EL 4.0 (Update-1)
- RedHat Linux EL 4.0 (Update-2)
- SuSE 10.0
- Fedora Core 4 x64
- RedHat Linux EL 4.0 (Update 3) x64
- RedHat Linux EL 4.0 (Update 4) x64
