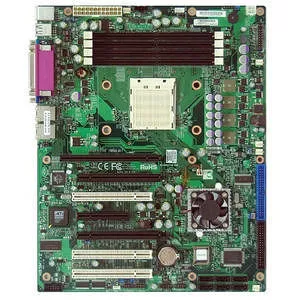

H8SMA-2 Workstation Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
H8SMA-2 Workstation Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8SMA-2-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8SMA-2
Product Name
H8SMA-2 Workstation Motherboard
Package Type
Retail
Product Type
Workstation Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
MCP55 Pro
Total Processor Supported
1
Processor Technology
HyperTransport Technology
Processor Socket
Socket PGA-940
Processor Supported
Opteron
Memory
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Parallel Port
Yes
Serial Port
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
4
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
9.6"
Miscellaneous
Package Contents
- H8SMA-2 Workstation Board
- 1 x Motherboard Manual for H8SMA-2
- 1 x I/O Cable
- 1 x ATX Floppy Cable
- 1 x ATA 100/133 IDE LP Cable
- 6 x 2ft. SATA Cable
- 1 x Version 1.0 (or newer) Chipset Driver CD
- 1 x Backplate For AMD AM2 CPU
- 1 x Retention Module For AMD AM2 CPU
Additional Information
ROHS Compliant
BIOS Features:
- 4Mb Flash EEPROM with AMI BIOS
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- BIOS Rescue Hot Keys
- SMBIOS 2.3
- USB Keyboard support
- Hardware BIOS Virus Protection
Hardware Monitoring:
- Onboard voltage monitors for CPU core, 3.3V, +5Vin, +12Vin, 5V standby and battery voltage
- Fan status monitor with firmware/software on/off and speed control
- Watch Dog
- Environmental temperature monitoring via BIOS
- Power-up mode control for recovery from AC power loss
- System resource alert
- Pulse Width Modulated (PWM) fan connectors
- Auto-switching voltage regulator for the CPU core
- Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT
- Monitor for HyperTransport voltage 1.2V, DDR termination 1.25V
- CPU 4-phase Switching Voltage Regulator
- Total up to five 4-pin fan headers
- 5 Fan Status Tachometer monitoring
- Status Monitor for Speed Control
- Monitoring for CPU and chassis environment
- CPU Thermal Trip support
- I2C temperature sensing logic
- CPU / Overheat LED
- Suspend-state indicator LED
- +5V Standby Alert LED
- CPU / Overheat LED
- Suspend-state indicator LED
- +5V Standby Alert LED
ACPI Features:
- Microsoft OnNow
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
- Suspend to RAM (STR)
Support CD Contents:
- BIOS flash upgrade utility
Supported Operating Systems:
- MS Win XP Pro + SP2
- MS Win 2003 Ent
- MS Win Vista
- MS Win XP Pro x64
- MS Win 2003 Ent x64
- MS Win Vista x64
- RedHat Linux EL 4.0 (Update-1)
- RedHat Linux EL 4.0 (Update-2)
- SuSE 10.0
- Fedora Core 4 x64
- RedHat Linux EL 4.0 (Update 3) x64
- RedHat Linux EL 4.0 (Update 4) x64
- SuSE 10.0 x64
