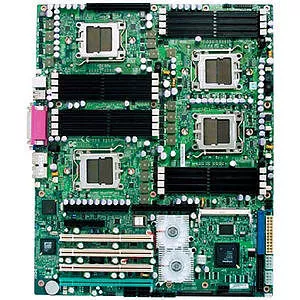

H8QME-2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
H8QME-2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8QME-2-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8QME-2
Product Name
H8QME-2 Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
MCP55 Pro
Total Processor Supported
4
Processor Technology
HyperTransport Technology
Processor Socket
Socket F LGA-1207
Processor Supported
Opteron
HyperTransport Speed (MHz)
1000
Memory
Number of Memory Slots
16
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ATI
Graphics Controller Model
ES1000
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
6
Number of PCI-X Slots
4
Total Number of PCI Express Slots
2
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Parallel Port
Yes
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Width
16"
Depth
13"
Miscellaneous
Package Contents
- 1 x H8QME-2 Server Board
- 1 x Motherboard Manual for H8QME-2
- 1 x I/O Cable
- 1 x ATX Floppy Cable
- 1 x ATA 100/133 IDE LP Cable
- 6 x 2Ft. SATA Cable
- 1 x Version 1.00 (or newer) Chipset Driver CD
- 1 x I/O Shield for Dual LAN
- 4 x CPU Heat Sink Back Plate
Additional Information
- ROHS Compliant
- Opteron 8000 Series processors supported
Chipsets:
- nVidia MCP55 Pro
- AMD 8132
Hardware Monitoring:
- Onboard voltage monitors for four CPU cores, Hyper Transport (1.2V), memory banks (1.8V), chipset (1.5V)
- Fan status monitor with firmware/software on/off and speed control
- Watch Dog
- Environmental temperature monitoring via BIOS
- Power-up mode control for recovery from AC power loss
- System resource alert (via included utility program)
- Auto-switching voltage regulator for the CPU core
- Total up to 9-fan status tachometer monitoring
- Up to nine 3-pin fan headers
- Status monitor for speed control
- Support 3-pin fans with fan-speed control
- Low noise fan speed control
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- PC Temperature Sensing Logic
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- PC Temperature Sensing Logic
- Chassis Intrusion Detection
- Chassis Intrusion Header
ACPI Features:
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
BIOS Features:
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- USB Keyboard Support
- SMBIOS 2.3
Support CD Contents:
- BIOS flash upgrade utility
Supported Operating Systems:
- MS Win 2000 Adv Server + SP4
- MS Win 2003 Ent
- MS Win Vista
- MS Win Vista
- MS Win 2003 Ent x64
- Fedora Core 4
- Fedora Core 5
- RedHat Linux EL 4.0 (Update-1)
- RedHat Linux EL 4.0 (Update-2)
- RedHat Linux EL 4.0 (Update-3)
- SuSE 9.3
- SuSE 10.0
- Fedora Core 4 x64
- Fedora Core 5 x64
- RedHat Linux EL 3.0 (Update-6) x64
- RedHat Linux EL 3.0 (Update-7) x64
- RedHat Linux EL 4.0 (Update 1) x64
- RedHat Linux EL 4.0 (Update 2) x64
- RedHat Linux EL 4.0 (Update 3) x64
- SuSE 9.3 x64
- SuSE 10.0 x64
- Solaris 10 (X86)
