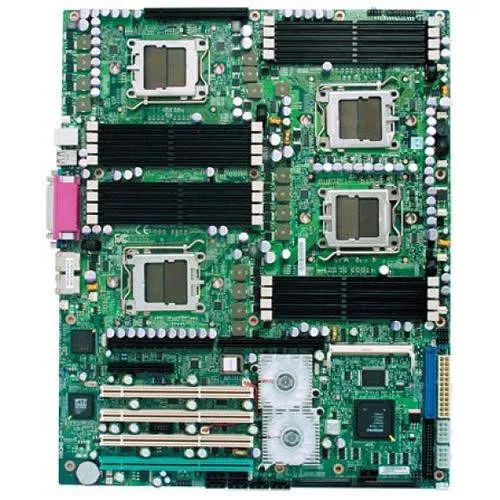

H8QM8-2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
H8QM8-2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8QM8-2-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8QM8-2
Product Name
H8QM8-2 Server Motherboard
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
MCP55 Pro
Total Processor Supported
4
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket F LGA-1207
Processor Supported
HyperTransport Speed (MHz)
1000
64-bit Processing
Yes
Memory
Number of Memory Slots
16
Maximum Memory Supported
128 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
ES1000
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
8
Number of PCI-X Slots
4
Total Number of PCI Express Slots
2
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Parallel Port
Yes
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Number of SCSI Interfaces
2
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
Extended ATX
Width
16"
Depth
13"
Miscellaneous
Package Contents
- H8QM8-2 Server Board
- Motherboard Manual
- 1 x U320 SCSI Manual
- 1 x I/O Cable
- 1 x ATX Floppy Cable
- 1 x ATA 100/133 IDE LP Cable
- 4 x 2Ft. SATA Cable
- 1 x Chipset Driver CD
- 1 x I/O Shield for Dual LAN
- 4 x Retention bracket
Additional Information
- Supports up to four Quad-core/Dual-core AMD Opteron 8000 Series processor
System BIOS:
- BIOS Type:
- 8Mb Flash EEPROM with AMI BIOS
- SST 49LF080A BIOS Chip
- BIOS Features:
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- USB Keyboard Support
- SMBIOS 2.3
ACPI Features:
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
CD Utilities:
- BIOS flash upgrade utility
Environmentally Friendly
Yes
