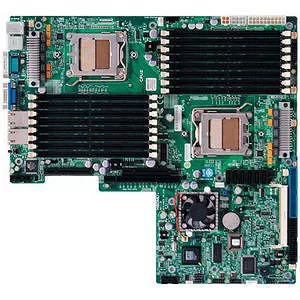

H8DMU+ Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
H8DMU+ Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8DMU+-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8DMU+
Product Name
H8DMU+ Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
MCP55 Pro
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket F LGA-1207
Processor Supported
Opteron
HyperTransport Speed (MHz)
1000
Memory
Number of Memory Slots
16
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
ES1000
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
4
Onboard LEDs Header
Yes
Physical Characteristics
Width
12.1"
Depth
13"
Miscellaneous
Package Contents
- 1 x H8DMU+ Server Board
- Motherboard Manual for H8DMU+
- 1 x ATX Floppy Cable
- 1 x ATA 100/133 IDE LP Cable
- 1 x Chipset Driver CD
- 2 x Retention Bracket
Additional Information
- ROHS Compliant
- Dual Channel memory supported
- Dual-core processors supported
PCI-Express Slots:
- 1U Left Side:
- 1 (x8) PCI-Express & UIO Slots
- 2U Left Side:
- 2 (x8) PCI-Express & UIO Slots
- 2U Right Side:
- 1 (x8) PCI-Express &
- 1 (x4) PCI-Express Slots
BIOS Features:
- 8Mb Flash EEPROM with AMI BIOS
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- BIOS Rescue Hot Keys
- USB Keyboard Support
- Hardware BIOS Virus Protection
- SMBIOS 2.3
Hardware Monitoring:
- Onboard voltage monitors for CPU cores, Hyper Transport (1.2V), memory banks (1.8V), 1.5V, MCP55 Core, 3.3V, 12V, -12V, 5V, VSB and battery voltage
- Fan status monitor with firmware/software on/off and speed control
- Watch Dog
- Environmental temperature monitoring via BIOS
- Power-up mode control for recovery from AC power loss
- System resource alert
- Auto-switching voltage regulator for the CPU core
- Monitors CPU Core Voltages, +3.3V, +5V,±12V, +5V Standby, HyperTransport Link voltage, memory voltage, VBAT, Chipset voltage
- CPU 4-Phase-switching voltage regulator
- Total up to 8-fan status tachometer monitoring
- Up to two 4-pin and six 3-pin fan headers
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal Control for 8x Fan Connectors
- I2C Temperature Sensing Logic
- CPU / System Overheat LED
- Suspend-State Indicator LED
- +5V Standby Alert LED
- UID/Remote LED
- Chassis Intrusion Detection
- Chassis Intrusion Header
ACPI Features:
- Microsoft OnNow
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
Support CD Contents:
- BIOS flash upgrade utility
Supported Operating Systems:
- MS Win XP Pro + SP2
- MS Win 2003 Ent
- MS Win Vista
- MS Win XP Pro x64
- MS Win 2003 Ent x64
- MS Win Vista x64
- Fedora Core 4
- Fedora Core 6
- RedHat Linux EL 3.0 (Update-8)
- RedHat Linux EL 4.0 (Update-3)
- RedHat Linux EL 4.0 (Update-4)
- SuSE 10.0
- SuSE SLES10
- FreeBSD
- Fedora Core 5 x64
- Fedora Core 6 x64
- RedHat Linux EL 3.0 (Update-7) x64
- RedHat Linux EL 3.0 (Update-8) x64
- RedHat Linux EL 4.0 (Update 3) x64
- RedHat Linux EL 4.0 (Update 4) x64
- SuSE 10.0 x64
- SuSE SLES 10 x64
- Solaris 10 (X86)
