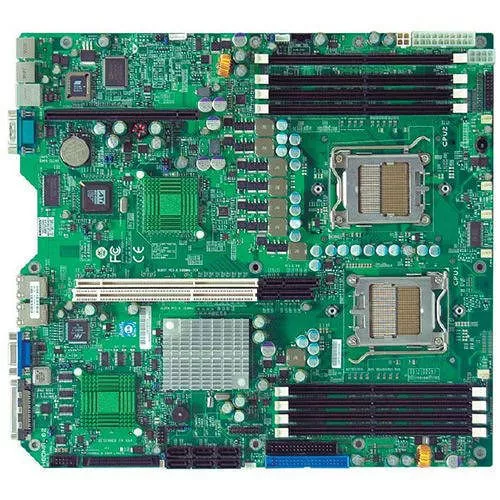

H8DMR-i2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
H8DMR-i2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8DMR-I2-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8DMR-i2
Product Name
H8DMR-i2 Server Motherboard
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
MCP55 Pro
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket F LGA-1207
Processor Supported
HyperTransport Speed (MHz)
1000
64-bit Processing
Yes
Memory
Number of Memory Slots
8
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
ES1000
Graphics Controller Memory
16 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
4
Number of PCI-X Slots
2
Total Number of PCI Express Slots
2
Number of PCI Express x8 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
Extended ATX
Width
12"
Depth
13.1"
Miscellaneous
Package Contents
- H8DMR-i2 Server Board
- Motherboard Manual
- 1 x ATX Floppy Cable
- 1 x ATA 100/133 IDE LP Cable
- 1 x Chipset Driver CD
- 2 x CPU Heat Sink Back Plate
Additional Information
- Supports upto two Quad-core/Dual-core AMD Opteron 2000 Series processor
System BIOS:
- BIOS Type:
- 8Mb Flash EEPROM with AMI BIOS
- SST49LF080A BIOS Chip
- BIOS Features:
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- USB Keyboard Support
ACPI Features:
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
CD Utilities:
- BIOS flash upgrade utility
Environmentally Friendly
Yes
