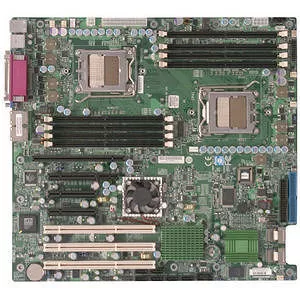

H8DMi-2 Server Board is with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
H8DMi-2 Server Board is with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8DMI-2-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8DMi-2
Product Name
H8DMi-2 Server Motherboard
Package Type
Bulk
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
MCP55 Pro
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket F LGA-1207
Processor Supported
Opteron
HyperTransport Speed (MHz)
1000
Memory
Number of Memory Slots
8
Maximum Memory Supported
32 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
ES1000
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
7
Number of PCI-X Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
2
Interfaces/Ports
Parallel Port
Yes
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
4
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
13.1"
Miscellaneous
Additional Information
- ROHS Compliant
- One x4 PCI-e (in a x8 physical slot)
- Dual Channel memory supported
Chipsets:
- nVidia MCP55 Pro
- AMD 8132
Hardware Monitoring:
- Monitors CPU Core Voltages, +3.3V, +5V, ±12V, 5V Standby, VBAT
- CPU 4-Phase-switching voltage regulator
- Total up to 8-fan status tachometer monitoring
- Up to six 3-pin and two 4-pin fan headers
- Status monitor for speed control
- 3-pin fan support
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- I2C Temperature Sensing Logic
- CPU / System Overheat LED
- +5V Standby Alert LED
- Chassis Intrusion Detection
- Chassis Intrusion Header
- Chipkill Support
- Onboard voltage monitors for two CPU cores, 3.3V, +5Vin, +12Vin, 5V standby and battery voltage
- Fan status monitor with firmware/software on/off and speed control
- Watch Dog
- Environmental temperature monitoring via BIOS
- Power-up mode control for recovery from AC power loss
- System resource alert
- Pulse Width Modulated (PWM) fan connectors
- Auto-switching voltage regulator for the CPU core
ACPI Features:
- Microsoft OnNow
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
Support CD Contents:
- BIOS flash upgrade utility
BIOS Features:
- 8 Mb AMIBIOS LPC Flash ROM
- APM 1.2
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- SMBIOS 2.3
- Plug and Play (PnP)
