About

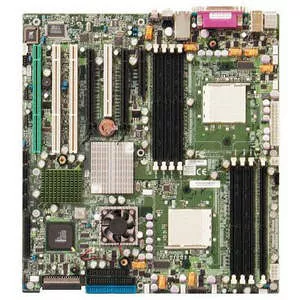

The H8DCi is based on the nVidia nForce Pro 2200/2050 and AMD 8132 chipset.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8DCi-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8DCi
Product Name
H8DCI Workstation Motherboard
Package Type
Bulk
Product Type
Workstation Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
nForce Pro 2200
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket PGA-940
Processor Supported
Opteron
HyperTransport Speed (MHz)
1000
64-bit Processing
Yes
Multi GPU Supported
SLI
Memory
Number of Memory Slots
8
Maximum Memory Supported
32 GB
Memory Standard
Memory Technology
DDR SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Audio
Sound Controller Model
ALC650
Audio Channels
5.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
7
Number of PCI Slots
1
Number of PCI-X Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x4 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Parallel Port
Yes
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
2
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
4
Onboard LEDs Header
Yes
Onboard Audio Header
Yes
Physical Characteristics
Form Factor
Extended ATX
Width
12"
Depth
13.1"
Miscellaneous
Additional Information
BIOS Features:
- Plug and Play (PnP)
- ACPI 2.0
- PCI 2.2
- DMI 2.3
- USB Legacy Support
- Real Time Clock (RTC) Wake-Up
Environmentally Friendly
Yes
