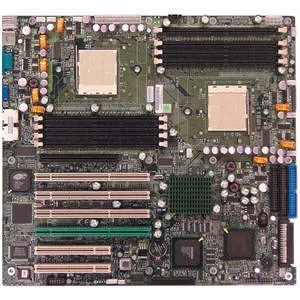

H8DAE Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
H8DAE Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8DAE-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8DAE
Product Name
H8DAE Server Motherboard
Packaged Quantity
1
Packing
Box
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
8131
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket PGA-940
Processor Supported
Opteron
Memory
Number of Memory Slots
8
Maximum Memory Supported
32 GB
Memory Standard
Memory Technology
DDR SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
Rage-XL
Graphics Controller Memory
8 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
7
Number of PCI Slots
2
Number of PCI-X Slots
4
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 1.1 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
2
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
13.1"
Miscellaneous
Package Contents
- 1 x H8DAE Server Board
- Motherboard Manual for H8DAE (In Electronic File)
- 1 x ATX Floppy Cable
- 1 x ATA 100/133 IDE LP Cable
- 2 x I/O Cable
- 1 x Version 1.03 (or newer) Chipset Driver CD
- 1 x I/O Shield for Dual LAN
- 4 x CPU Heat Sink Back Plate
Additional Information
System BIOS:
- BIOS Type:
- 4Mb Flash EEPROM with AMI BIOS
- BIOS Features:
- Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.3
- ACPI 2.0
- Fan Speed Control
