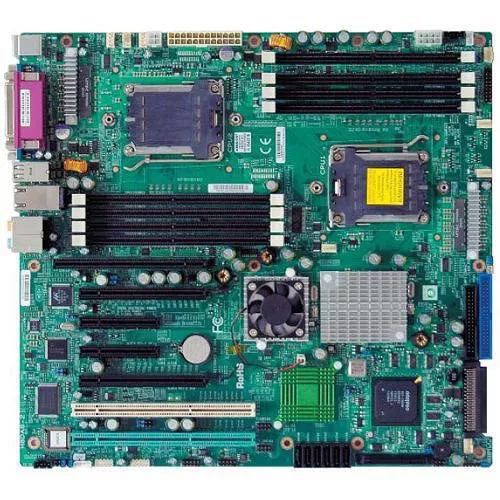

H8DAE-2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
H8DAE-2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8DAE-2-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8DAE-2
Product Name
H8DAE-2 Server Motherboard
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
MCP55 Pro
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket F LGA-1207
Processor Supported
HyperTransport Speed (MHz)
1000
64-bit Processing
Yes
Multi GPU Supported
SLI
Memory
Number of Memory Slots
8
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Audio
Sound Controller Model
ALC-883
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI-X Slots
2
Total Number of PCI Express Slots
4
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Parallel Port
Yes
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
4
Total Number of Onboard FireWire/i.LINK Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
Extended ATX
Width
13.1"
Depth
12"
Miscellaneous
Package Contents
- H8DAE-2 Server Board
- Motherboard Manual
- 1 x ATX Floppy Cable
- 1 x ATA 100/133 IDE LP Cable
- 6 x 2Ft. SATA Cable
- 1 x Firewire IEEE 1394 cable
- 1 x Chipset Driver CD
- 1 x I/O Shield for Dual LAN
- 2 x Retention Bracket
- 1 x 2-Port USB 2.0 Cable with Key
Additional Information
- Supports up to two Quad-Core/Dual-Core AMD Opteron 2000 Series processor
System BIOS:
- BIOS Type:
- 8Mb Flash EEPROM with AMI BIOS
- BIOS Features:
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- BIOS Rescue Hot Keys
- USB Keyboard Support
- Hardware BIOS Virus Protection
- SMBIOS 2.3
Management:
- Software:
- Super Doctor III
- Watch Dog
- Power Configurations:
- ACPI Power Management
- Main Switch Override Mechanism
- Wake-On-Ring (WOR) header
- Wake-On-LAN (WOL) header
- CPU Fan auto-off in sleep mode
- Keyboard Wakeup from Soft-Off
- Power-on mode control for AC power loss recovery
- Internal/External modem remote ring-on
- Suspend to RAM (STR)
PC Health Monitoring:
- CPU:
- Monitors CPU Core Voltages, +1.5V, +3.3V, +5V, ±12V, 3.3V Standby, 5V Standby, HyperTransport Link voltage 1.2V, memory voltage 1.8V, VBAT
- CPU switching voltage regulator
- FAN:
- Total up to 8-fan status tachometer monitoring
- Up to eight 4-pin fan headers
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Temperature:
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal Control for 8x Fan Connectors
- I2C Temperature Sensing Logic
- LED:
- CPU / System Overheat LED
- Suspend-State Indicator LED
- +5 Standby Alert LED
- Other Features:
- Chassis Intrusion Detection
- Chassis Intrusion Header
ACPI Features:
- Microsoft OnNow
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
- Suspend to RAM (STR)
CD Utilities:
- BIOS fl ash upgrade utility
Environmentally Friendly
Yes
